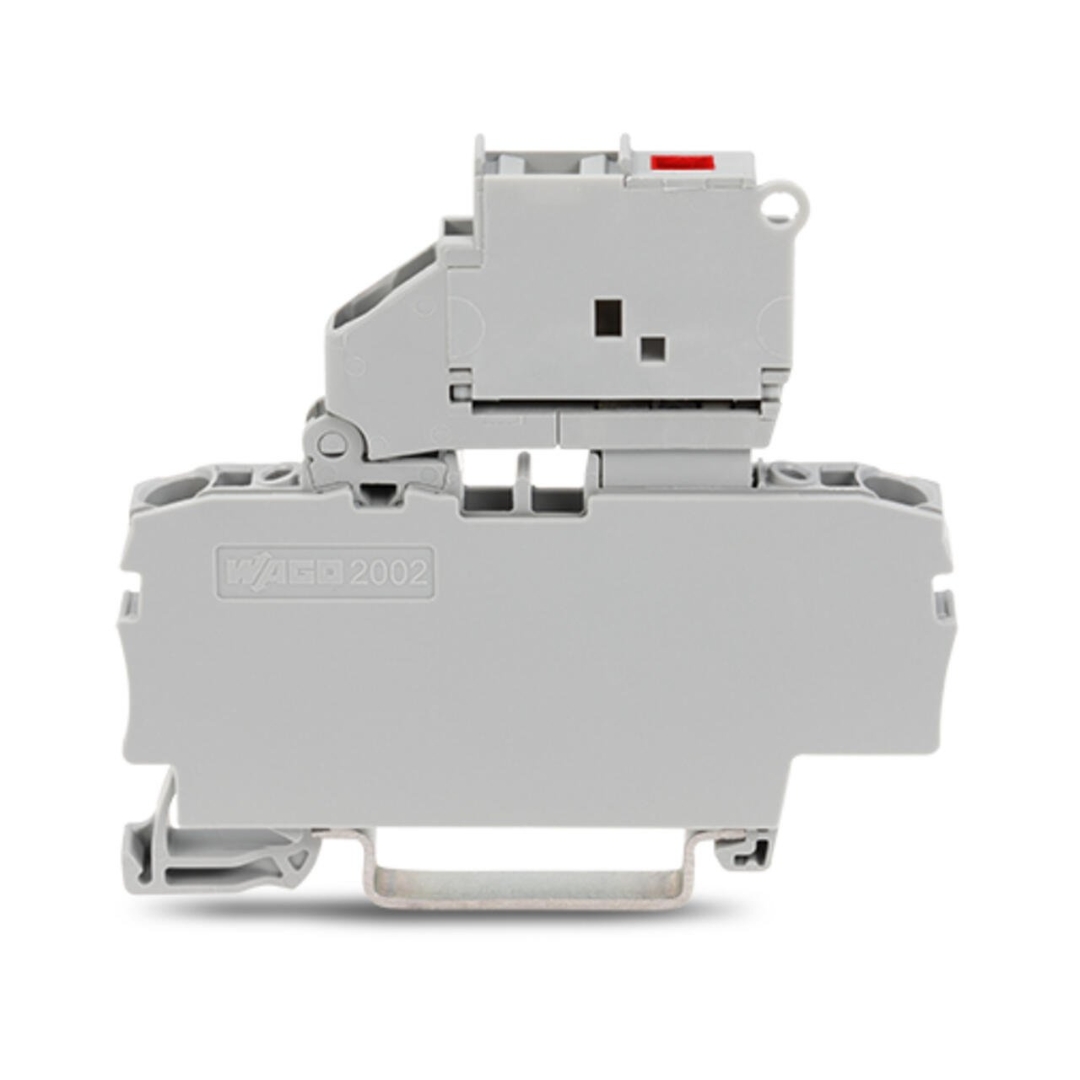

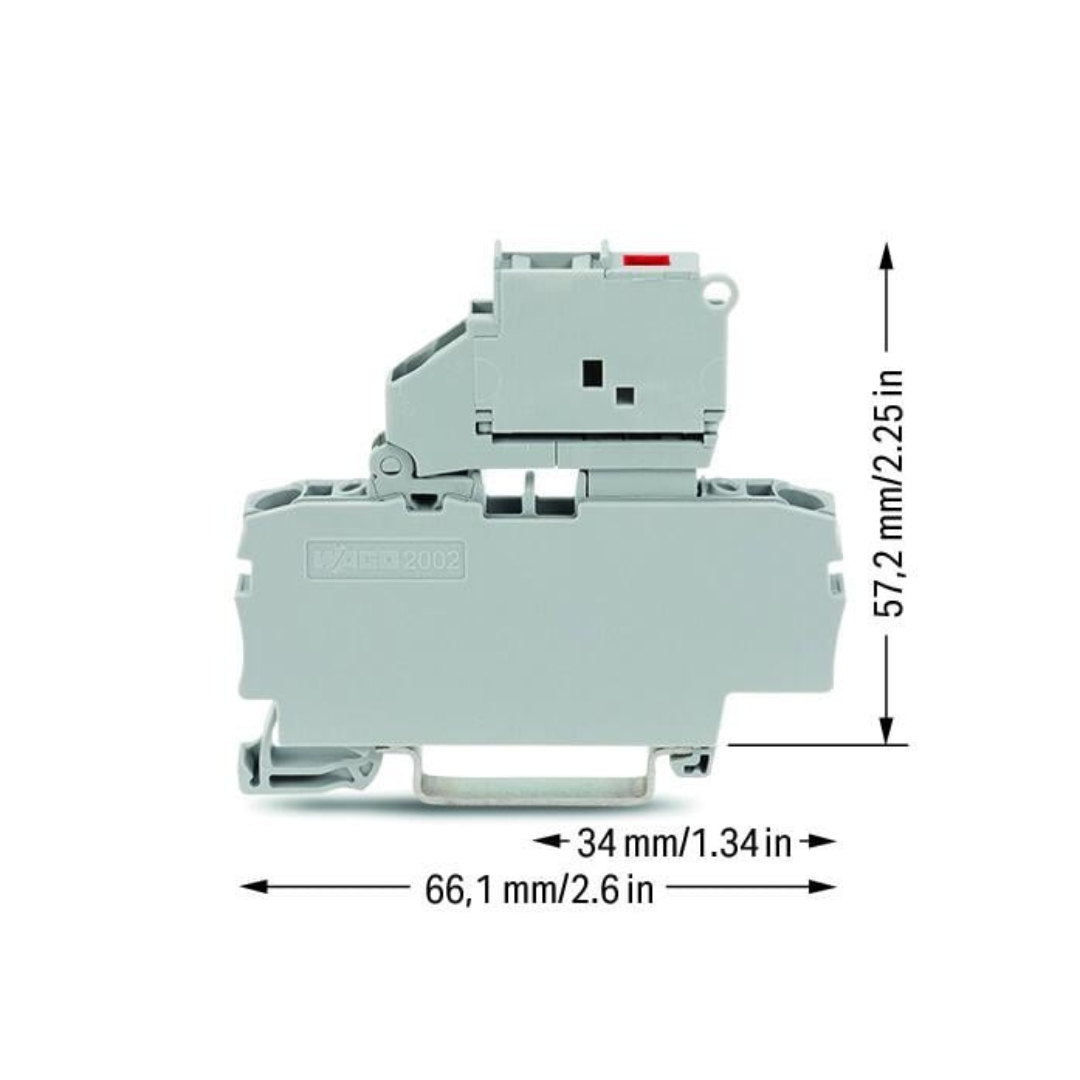

2002-1611/1000-836-WAGO | 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 230 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product Description

The Fuse Terminal Block (Item #2002-1611/1000-836) is a versatile, safety-certified solution designed for robust circuit protection in industrial, hazardous, and railway environments. Featuring Push-in CAGE CLAMP® technology, it enables effortless, tool-free connections for solid or fine-stranded conductors (0.25–4 mm²). Certified for ATEX/IECEx (Ex ec IIC Gc) and compliant with IEC, UL, and CSA standards, this DIN-35 rail-mounted block offers high surge protection (6 kV IEC / 0.8 kV Ex) and supports voltages up to 250V (IEC/UL) and 230V (Ex). Its flame-retardant polyamide (PA66) housing, extended temperature resilience (-60°C to +105°C), and vibration/shock resistance (per DIN EN 61373) ensure reliability in extreme conditions, while optimized power loss (1.6W–2.5W) enhances energy efficiency.

Key Features

• Multi-Standard Compliance: Certified for IEC/EN 60947-7-3, UL 1059, CSA 22.2 No 158, and ATEX/IECEx (Ex ec IIC Gc) for hazardous environments.

• High-Performance Connectivity: Tool-free Push-in CAGE CLAMP® accommodates 0.25–4 mm² conductors (solid, stranded, or ferruled) with front-entry wiring.

• Enhanced Durability: Vibration/shock tested (5–150Hz, 5g acceleration) and UL94 V0 flame-retardant housing for industrial resilience.

• Extended Thermal Range: Operates reliably from -60°C to +105°C, ideal for harsh environments.

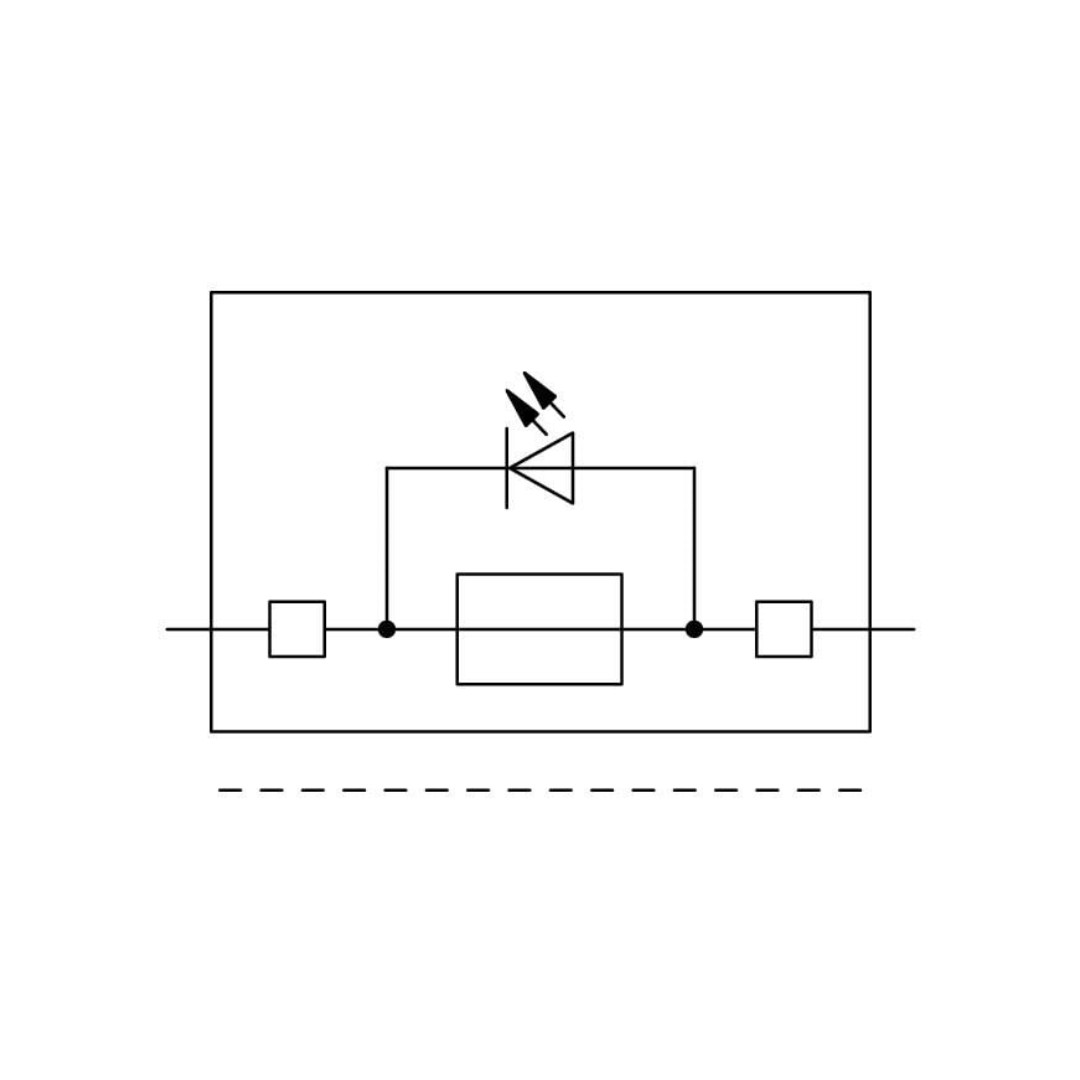

• Safety-Centric Design: Rated surge voltage up to 6 kV (IEC), leakage current protection (2 mA LED indication for blown fuses), and RoHS compliance (Exemptions: 6(c), 7(a), 7(c)-I/II).

• Railway-Ready: Tested per DIN EN 61373 for rolling stock applications, ensuring stability under prolonged vibration/shock stress.
