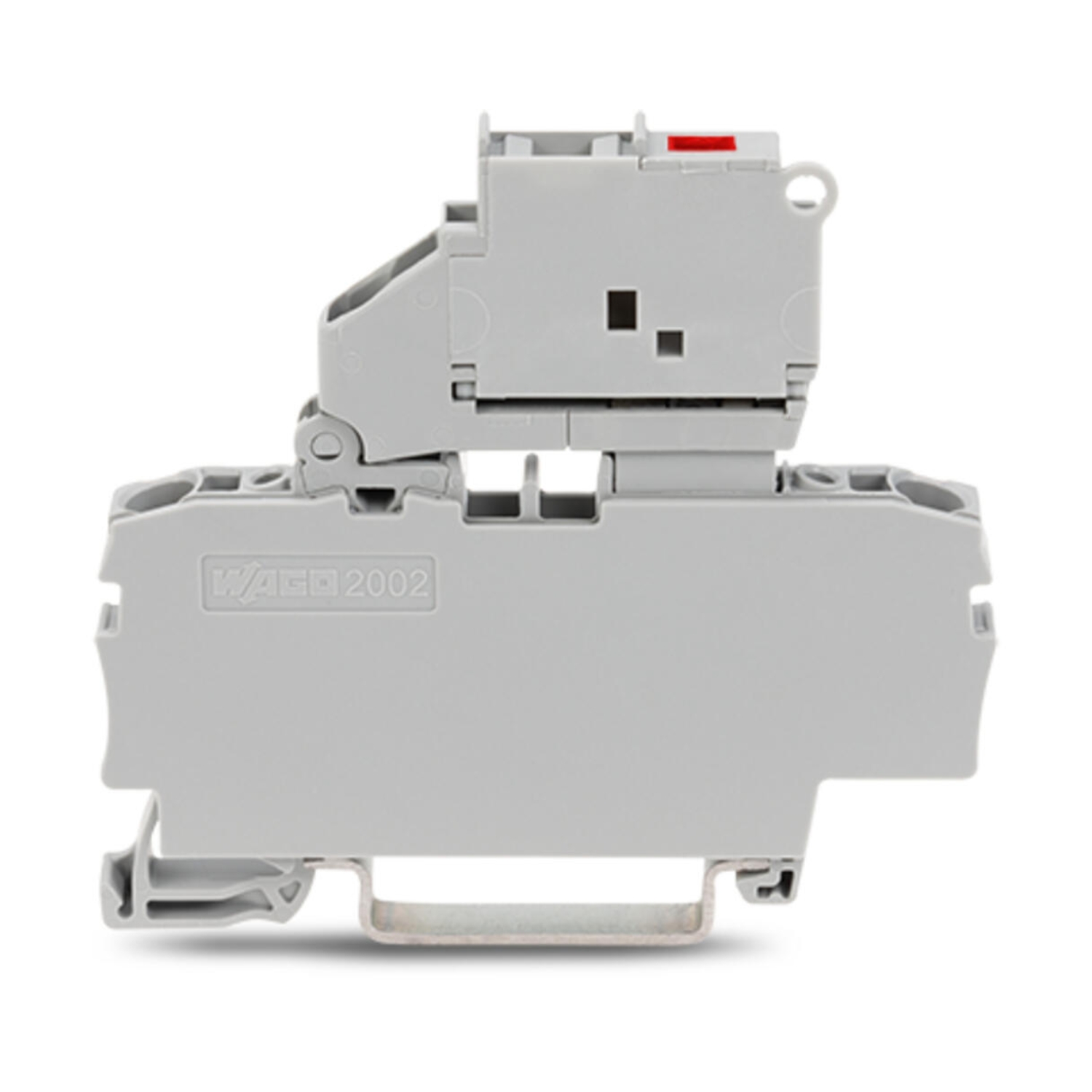

2002-1611/1000-867 – WAGO | TOPJOB®S fuse disconnect terminal block; with pivoting fuse holder for 5 x 20 mm fuse; with blown fuse LED indication for 120 V; rail mount; 2-conductor; 6.2 mm wide; gray

Description

The WAGO 2002-1611/1000-867 TOPJOB® S is a high-reliability 2-conductor fuse disconnect terminal block engineered for seamless circuit protection on DIN-35 rails. This model features a pivoting fuse holder designed for 5 x 20 mm cylindrical fuses and is equipped with an integrated red LED blown fuse indicator specifically calibrated for 120 V systems. Built with WAGO’s industry-leading Push-in CAGE CLAMP® technology, it allows for fast, vibration-proof termination of solid and fine-stranded conductors. Its robust design is certified for demanding environments, including railway applications and hazardous areas, ensuring long-term performance and safety in industrial control panels.

Key Features

• 120V LED Fault Indication: Features a built-in red LED that provides immediate visual confirmation of a blown fuse, specifically for 120V AC/DC circuits.
• Pivoting Disconnect: The swiveling fuse holder allows for safe and easy fuse replacement without removing the terminal block from the rail.
• Push-in CAGE CLAMP®: Enables direct, tool-free insertion of solid and ferruled conductors, reducing installation time and ensuring maintenance-free connections.
• Railway & Industrial Grade: Compliant with DIN EN 50155 for shock and vibration resistance, making it ideal for rolling stock and heavy machinery.
• Extreme Temperature Range: Reliable operation in harsh conditions with a continuous operating temperature range of -60 °C to +105 °C.
• Hazardous Area Approval: ATEX and IECEx certified (Ex ec IIC Gc) for safety in potentially explosive atmospheres.

Specifications
