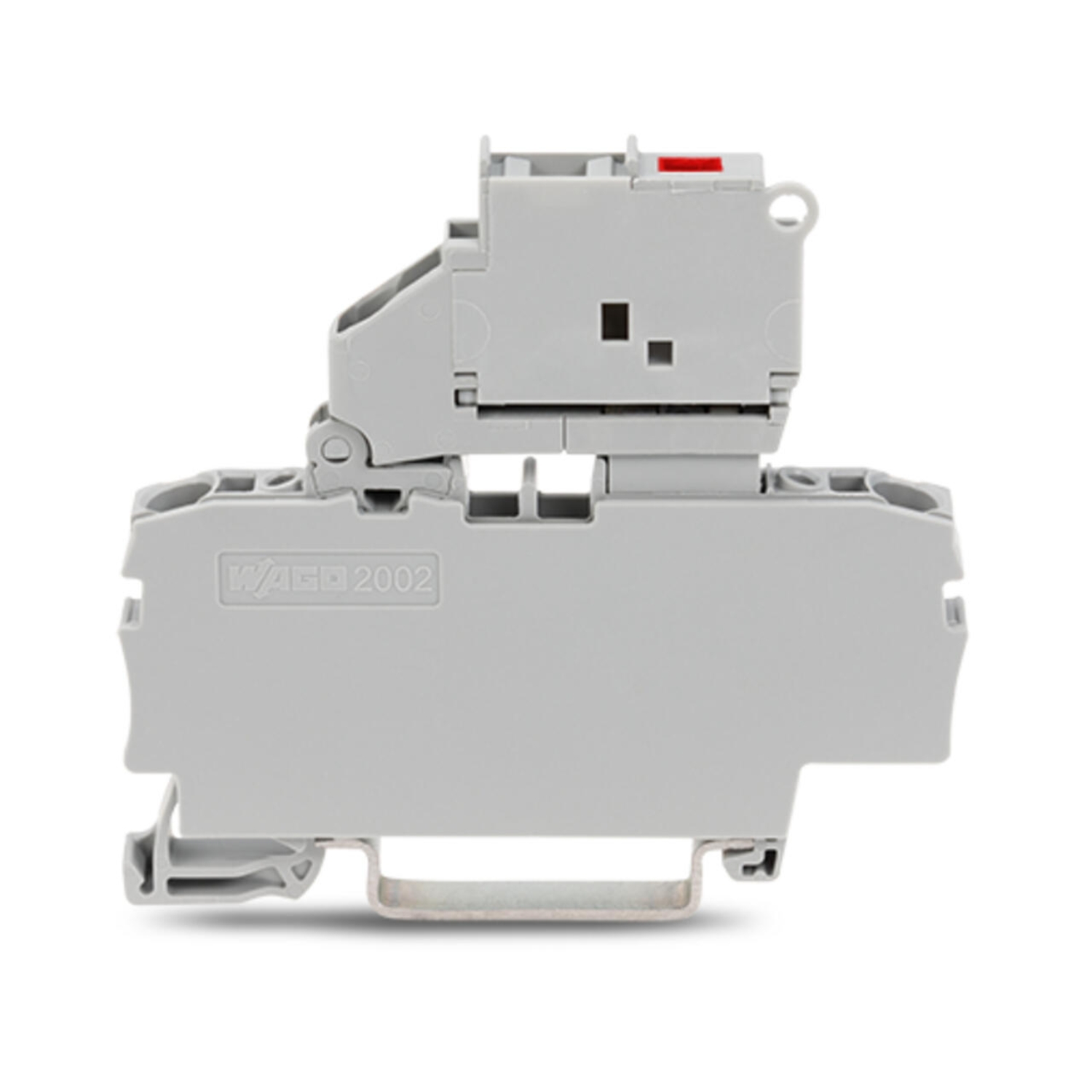

2002-1611/1000-836 – WAGO | TOPJOB®S fuse disconnect terminal block; with pivoting fuse holder for 5 x 20 mm fuse; with blown fuse LED indication for 230 V; rail mount; 2-conductor; 6.2 mm wide; gray

Description

The WAGO 2002-1611/1000-836 TOPJOB® S is a specialized 2-conductor fuse disconnect terminal block designed for high-voltage circuit protection. Featuring a pivoting fuse holder for standard 5 x 20 mm cylindrical fuses, this rail-mount terminal includes an integrated red LED blown fuse indicator specifically rated for 230 V applications. This allows for immediate visual identification of failed circuits in high-voltage control systems. Built with WAGO’s Push-in CAGE CLAMP® technology, it provides a secure, vibration-proof connection for various conductor types, while its robust construction is certified for extreme environmental conditions, including railway and hazardous area applications.

Key Features

• High-Voltage LED Indicator: Integrated red LED provides clear visual status of blown fuses at 230 V, reducing downtime during maintenance.
• Pivoting Fuse Holder: Simplifies fuse replacement with a safe, swiveling design that accommodates 5 x 20 mm miniature fuses.
• Advanced Connection Tech: Push-in CAGE CLAMP® enables fast, tool-free termination of solid or ferruled conductors (0.25 … 4 mm²).
• Extreme Durability: Rated for a wide operating temperature range of -60 °C to +105 °C and certified for railway vibration and shock resistance.
• Hazardous Area Certified: Meets ATEX and IECEx standards (Ex ec IIC Gc) for use in potentially explosive environments.
• Compact Footprint: The 6.2 mm width allows for high-density wiring on standard DIN-35 rails.
