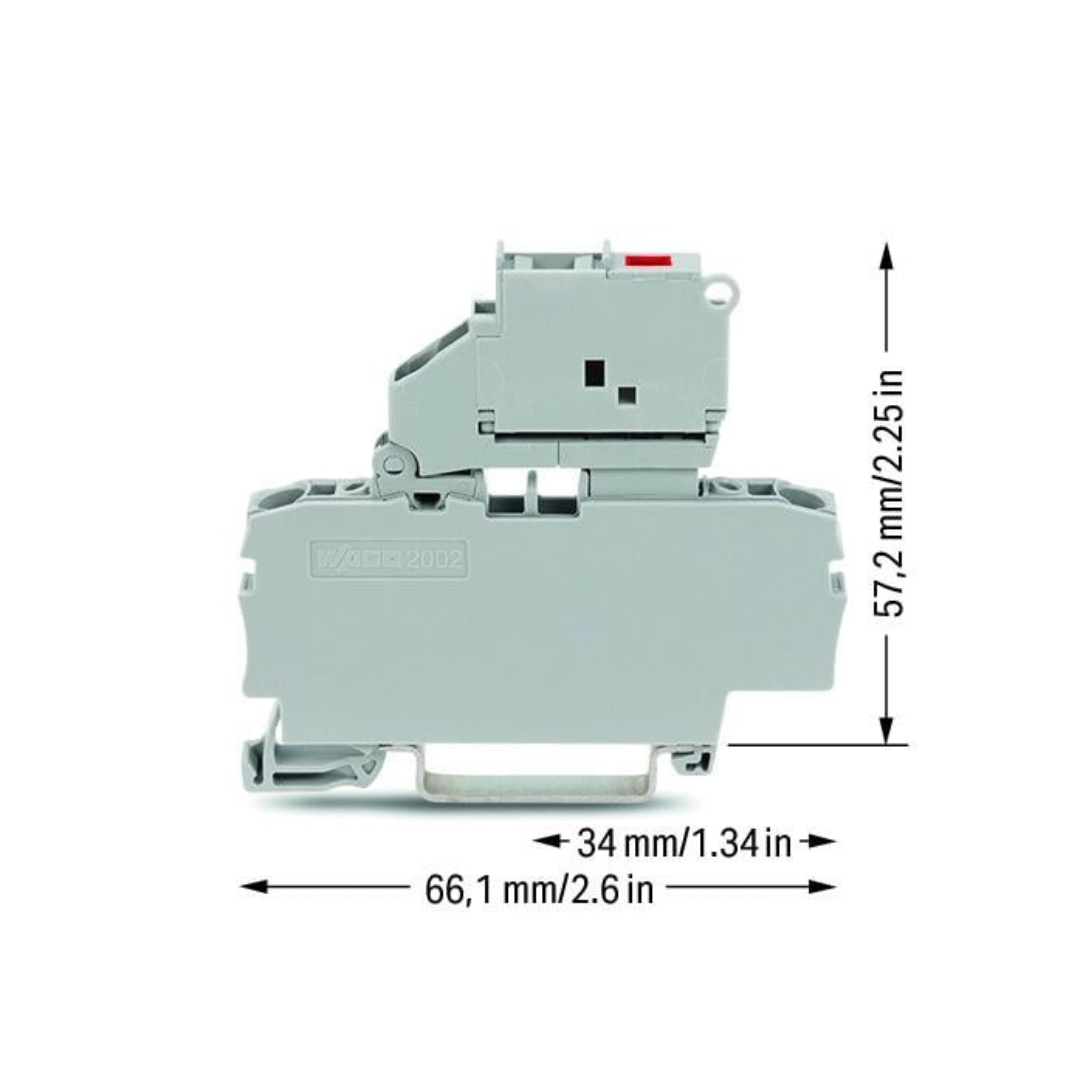

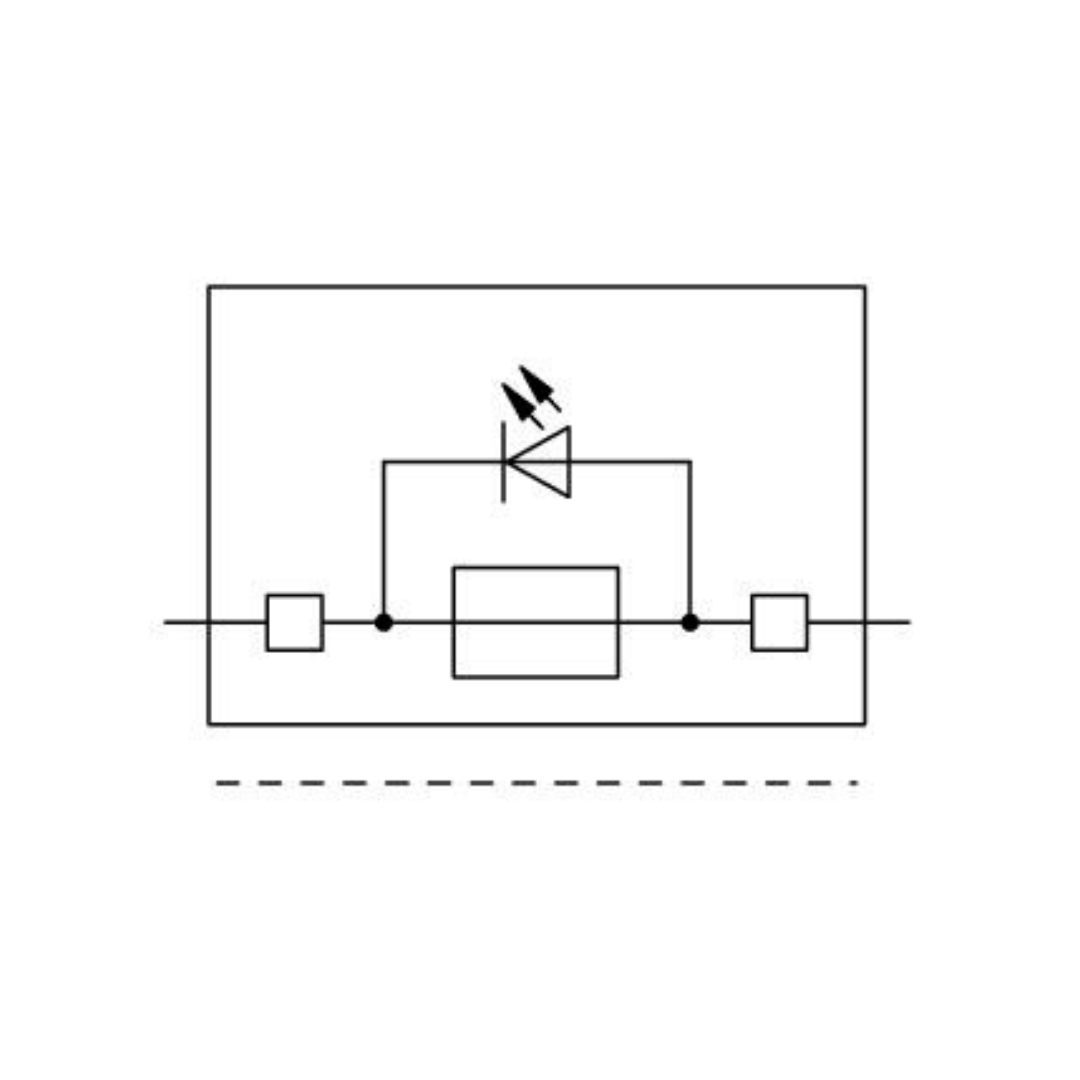

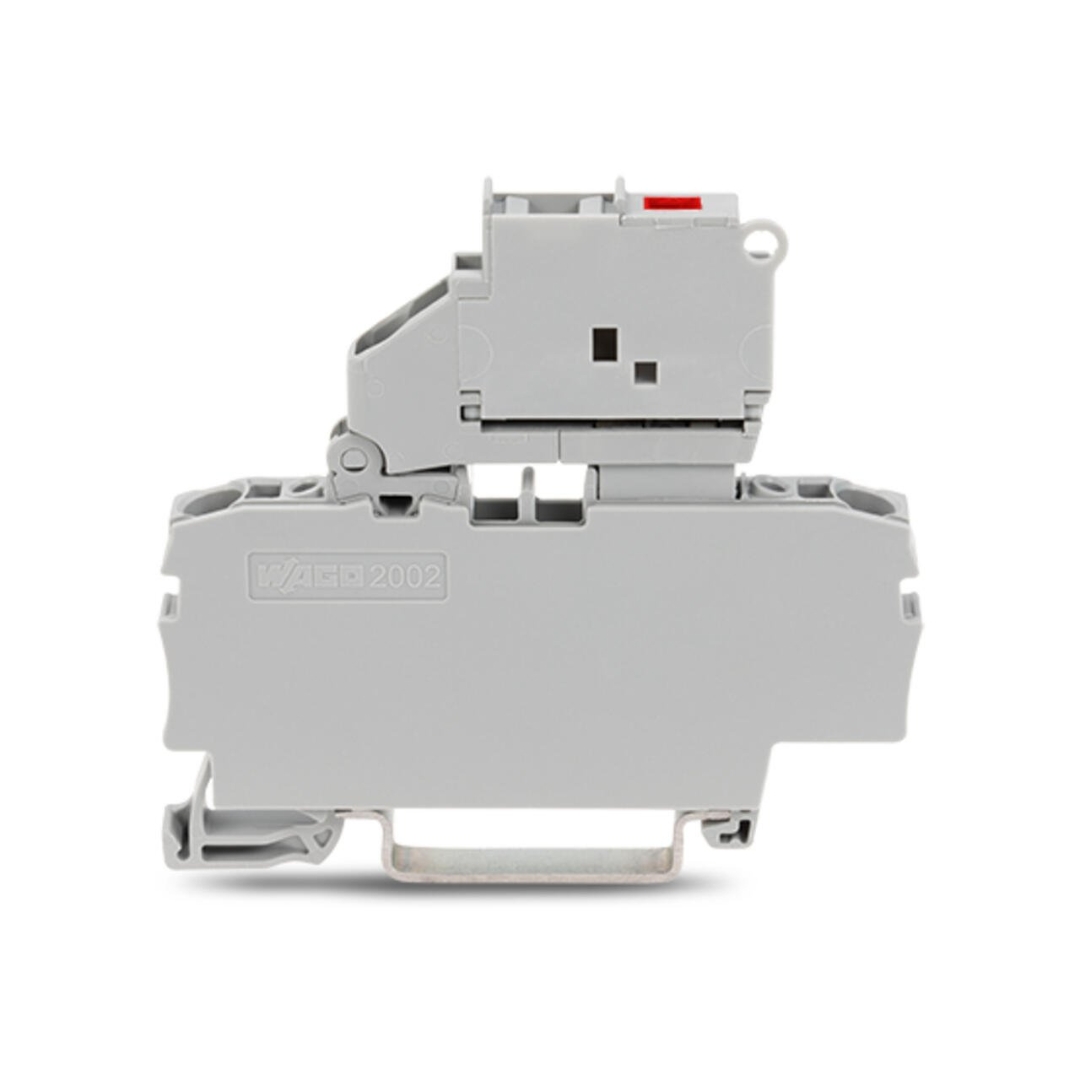

2002-1611/1000-541-WAGO | 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 12 – 30 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product Description

The Fuse Terminal Block (Item #2002-1611/1000-541) is a high-performance electrical component designed for secure and efficient circuit protection in industrial and hazardous environments. Engineered with Push-in CAGE CLAMP® technology, it ensures tool-free, universal connectivity for solid or fine-stranded conductors (0.25–4 mm²). Certified for Ex applications (ATEX/IECEx), this DIN-35 rail-mounted block features a durable polyamide (PA66) housing, vibration/shock resistance per railway standards, and compliance with IEC, UL, and CSA ratings. Ideal for overload and short-circuit protection, it supports flexible installation in demanding conditions (-35°C to +70°C) while minimizing power loss.

Key Features

• Robust Safety Compliance: Meets IEC/EN 60947-7-3, UL 1059, and CSA 22.2 No 158 standards; ATEX/IECEx-certified for hazardous areas (Ex ec IIC Gc).

• Versatile Connectivity: Push-in CAGE CLAMP® accepts 0.25–4 mm² conductors (solid, stranded, or ferruled) without tools.

• High Durability: Vibration/shock tested (DIN EN 61373) with polyamide V0 flame-retardant housing.

• Optimized Power Management: Max power loss of 1.6W (overload) and 2.5W (short-circuit).

• Wide Voltage Compatibility: 24V (Ex), 30V (UL/CSA), and 250V (IEC) ratings for diverse applications.

• Industrial-Grade Design: DIN-35 rail mounting, front-entry wiring, and -35°C to +70°C operational range.

Specifications
