Product Description

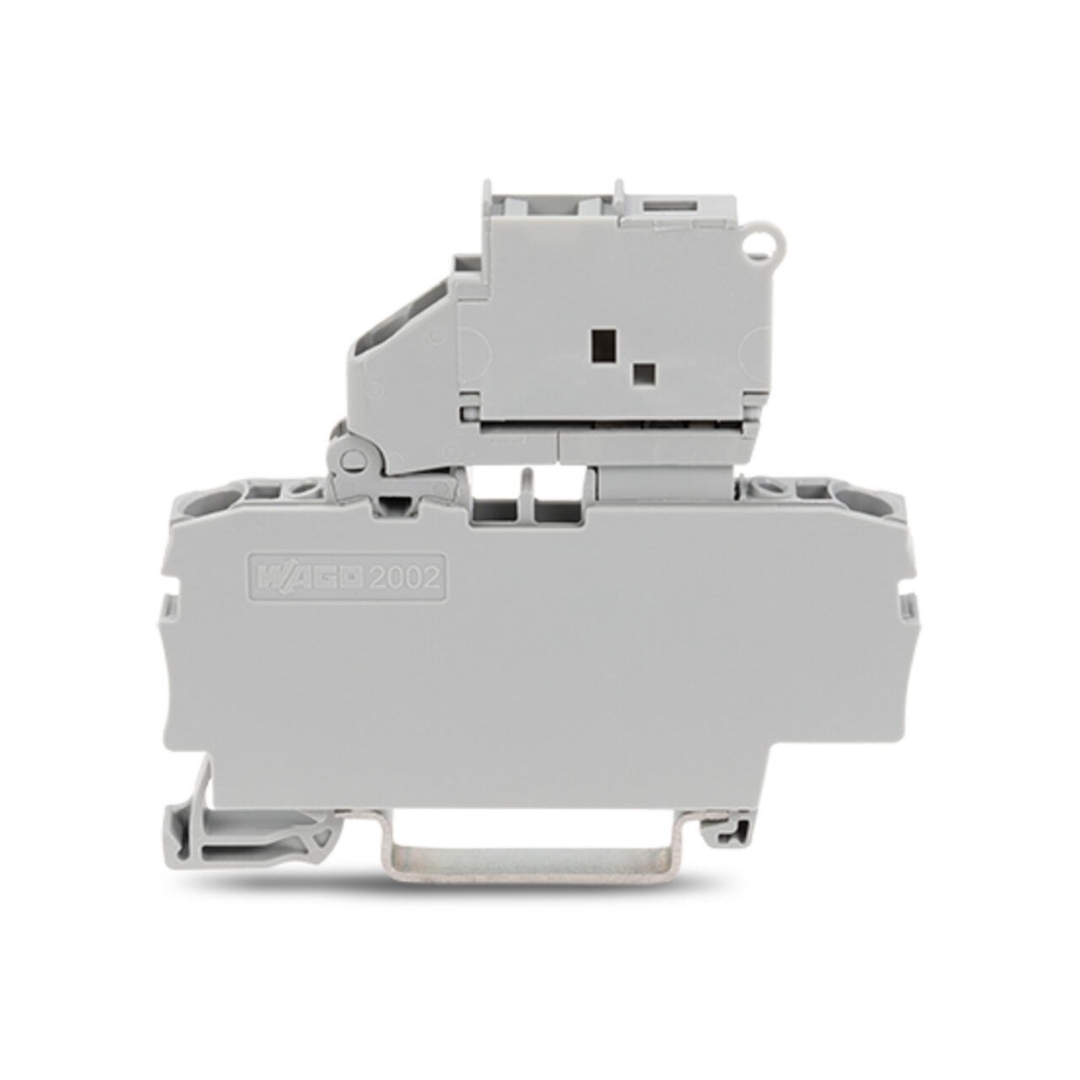

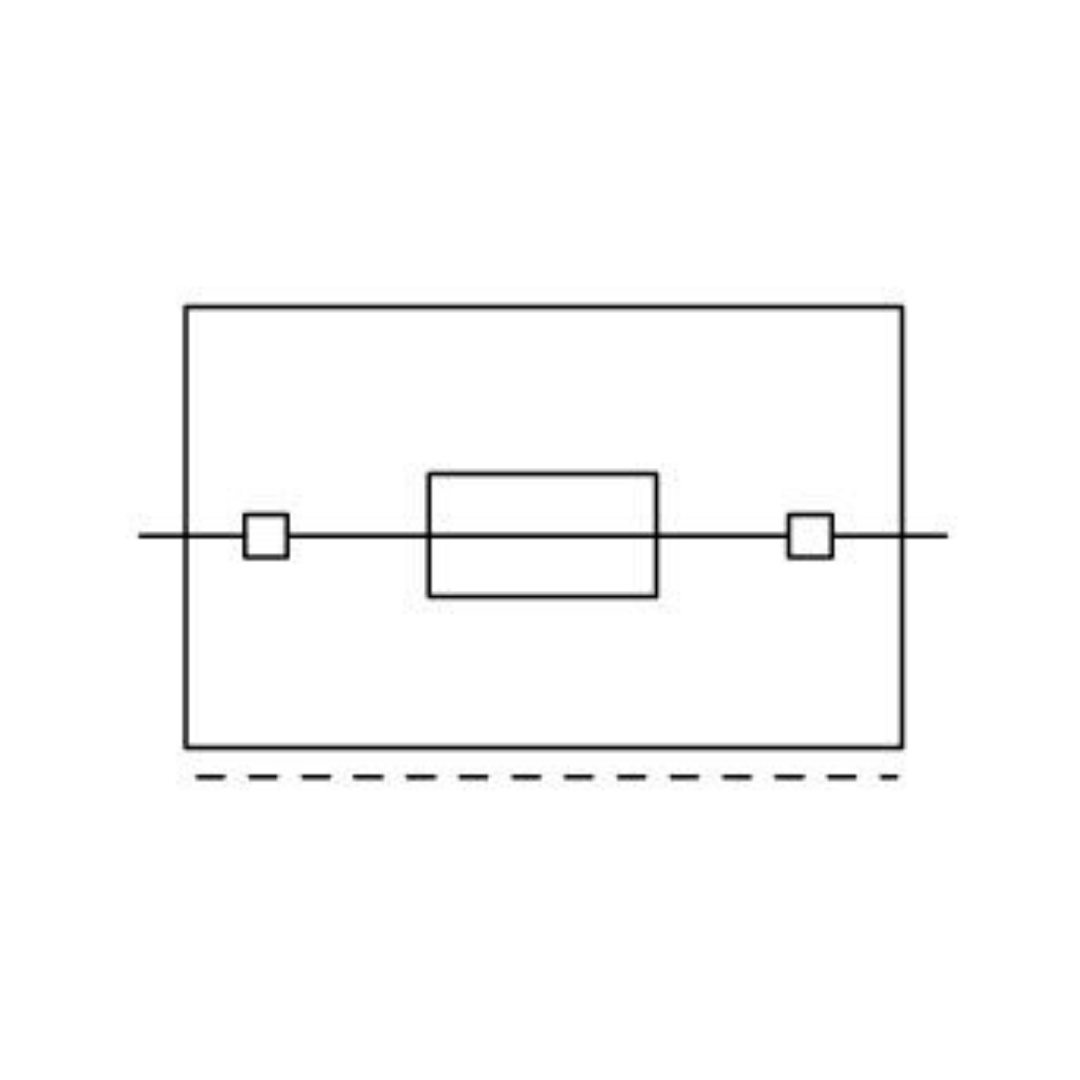

The WAGO 2002-1611 TOPJOB® S Fuse Terminal Block delivers compact circuit protection with fast, secure connections using Push-in CAGE CLAMP® technology. Designed for DIN-35 rail mounting, this single-level terminal accommodates 5 × 20 mm cylindrical fuses and supports conductor sizes from 0.25 to 4 mm². Its tool-free wiring system streamlines installation for both solid and fine-stranded copper conductors with or without ferrules. With approvals per IEC, UL, CSA, and Ex standards, it offers reliable performance in harsh industrial and railway environments.
Key Features
-
Push-in CAGE CLAMP® connection: Tool-free insertion of conductors
-
DIN-rail mountable: Snap-on installation on standard 35 mm rails
-
Compact design: Only 6.2 mm wide, ideal for space-limited panels
-
5 × 20 mm fuse holder: Integrated pivoting receptacle for quick fuse changes
-
Wide conductor range: 0.25–4 mm² (22–12 AWG)
-
Vibration/shock tested: Fully compliant with EN 50155 & EN 61373
-
Ex-rated: Suitable for hazardous areas (ATEX, IECEx approved)
-
RoHS compliant: Environmentally responsible, no exemptions
Technical Specifications
| Category | Parameter | Value |
|---|---|---|
| Electrical (IEC 60947-7-3) | Overvoltage Category / Pollution Degree | III/3, III/2, II/2 |
| Nominal Voltage / Surge Voltage / Current | 250 V / 6 kV / 6.3 A | |
| UL 1059 | Use Group | B, C, D |
| Rated Voltage / Current | 250 V / 10 A | |
| CSA 22.2 No 158 | Use Group / Rated Voltage / Current | B, C, D / 250 V / 6.3 A |
| Ex Approvals | ATEX / IECEx | Ex ec IIC Gc (275 V / 6.3 A) |
| Power Loss | Max (Pl) | 1.6 W (group/individual arrangements) |
| Fuse Type | Receptacle / Format | Pivoting / Cylindrical (5 × 20 mm) |
| Connection | Technology / Actuation | Push-in CAGE CLAMP® / Operating tool |
| Conductor Material / Direction | Copper / Front-entry | |
| Cross Section Range | 0.25–4 mm² (22–12 AWG) | |
| Strip Length | 10–12 mm (0.39–0.47 in) | |

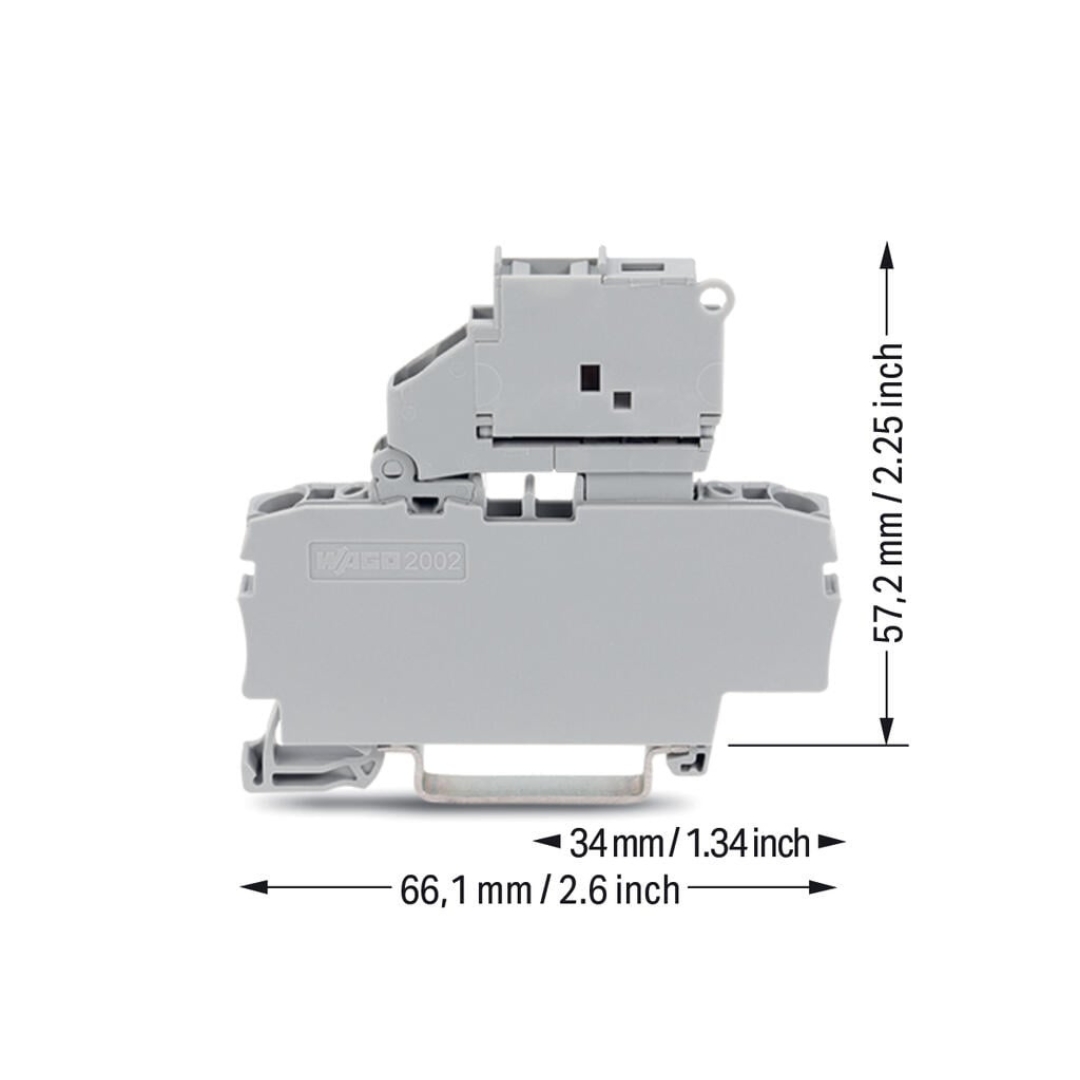

| Construction | Width / Height / Depth from rail | 6.2 mm / 66.1 mm / 57.2 mm |
| Mounting | DIN-35 rail | |
| Housing Material / Flammability | PA66 / UL94 V0 | |
| Fire Load / Weight | 0.293 MJ / 13.4 g | |
| Environmental | Operating Temp / Processing Temp | -60…+105 °C / -35…+85 °C |
| Shock & Vibration Standard | EN 50155, EN 61373 (passed all tests) | |
| Commercial Data | Packaging Unit / GTIN | 50 pcs / 4055143870344 |
| Country of Origin / Customs Tariff | China / 8536904000 | |
| Product Classification | UNSPSC / eCl@ss / ETIM | 39121410 / 27-14-11-16 / EC000899 |
| Compliance | RoHS | Compliant, no exemption |
