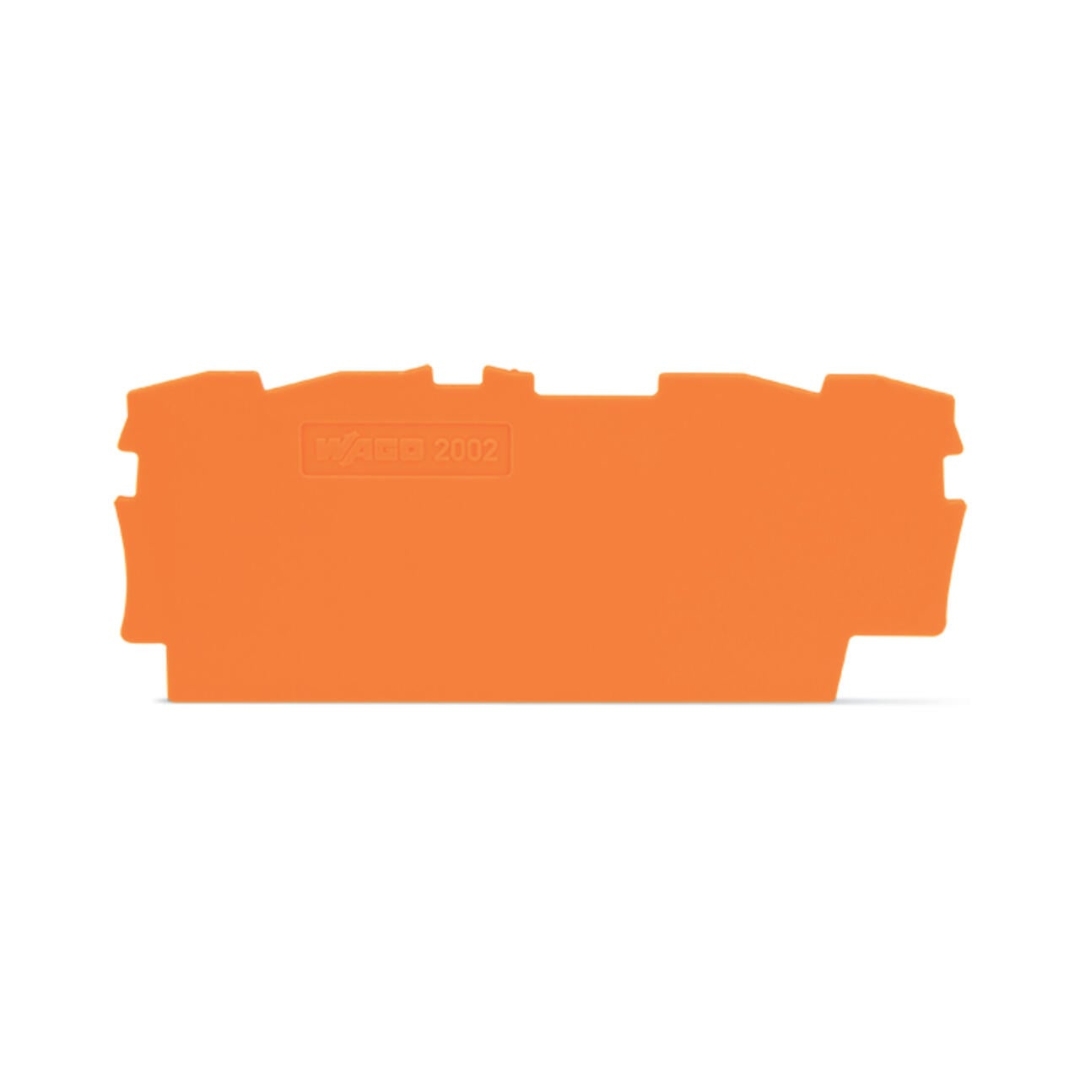

2002-1492-WAGO | End and intermediate plate; 0.8 mm thick; orange

2002-1492-WAGO | End and intermediate plate; 0.8 mm thick; orange

$ 1.44

The TOPJOB S 0.8 mm snap‑on terminal block in bright orange combines ultra‑dense wiring capacity with rugged reliability for DIN‑rail installations. With a mere 0.8 mm pitch and a 70 mm height, it maximizes connection density while occupying minimal space. Its flame‑retardant PA66 housing (UL94 V‑0) and extensive DIN EN 50155/DIN EN 61373 approvals guarantee steadfast performance under harsh vibration, shock and temperature cycles. Weighing just 1.7 g, it’s the perfect choice for rolling stock electronics, industrial control panels and other critical systems requiring safe, tool‑free terminations.

49 in stock (can be backordered)

SKU: 2002-1492 Categories: , ,

Product Description

The TOPJOB S 0.8 mm snap‑on terminal block in bright orange combines ultra‑dense wiring capacity with rugged reliability for DIN‑rail installations. With a mere 0.8 mm pitch and a 70 mm height, it maximizes connection density while occupying minimal space. Its flame‑retardant PA66 housing (UL94 V‑0) and extensive DIN EN 50155/DIN EN 61373 approvals guarantee steadfast performance under harsh vibration, shock and temperature cycles. Weighing just 1.7 g, it’s the perfect choice for rolling stock electronics, industrial control panels and other critical systems requiring safe, tool‑free terminations.

Key Features

  • Ultra‑narrow 0.8 mm pitch: Maximizes DIN‑rail wiring density

  • Snap‑on mounting: Quick, tool‑free attachment to DIN‑35 rails

  • Flame‑retardant PA66 housing: UL94 V‑0 rated for enhanced safety

  • Railway‑grade tested: Compliant with DIN EN 50155 & DIN EN 61373

  • Low fire load: 0.051 MJ minimizes combustible energy release

  • Lightweight design: Only 1.7 g per unit

  • RoHS compliant: Environmentally friendly, no exemptions

Specifications

Category Parameter Value
Physical Data Width 0.8 mm (0.031 in)
Height 70 mm (2.756 in)
Depth 28.9 mm (1.138 in)
Mechanical Data Mounting Type Snap‑on onto DIN‑35 rail
Material Data Note See material specifications here
Color Orange
Material Group I
Insulation Material (main housing) Polyamide (PA66)
Flammability Class (UL94) V‑0
Fire Load 0.051 MJ
Weight 1.7 g
Environmental & Testing Electronic Equipment (DIN EN 50155) VDE 0115‑200:2022‑06
Shock & Vibration (DIN EN 61373) VDE 0115‑0106:2011‑04
• Noise‑like Vibration 5 Hz–150 Hz, 0.572 g, 5 h per axis
• Shock Half‑sine, 5 g, 30 ms, 3 pos./3 neg. per axis
Contact Fault & Voltage Drop Monitoring (before/after each axis) Passed
Commercial Data Product Group 22 (TOPJOB S)
PU (SPU) 100 pcs (25 pcs inner packs)
Packaging Type Box
Country of Origin CN (China)
GTIN 4055143234245
Customs Tariff Number 8538906000
Classification UNSPSC 39121702
eCl@ss 10.0 & 9.0 27‑14‑11‑33
ETIM 9.0 & 8.0 EC000886
ECCN No US Classification
Compliance RoHS Status Compliant, no exemption
Weight 0.003748 lbs
Dimensions 1.138 × 0.031 × 2.756 in
