Product Description

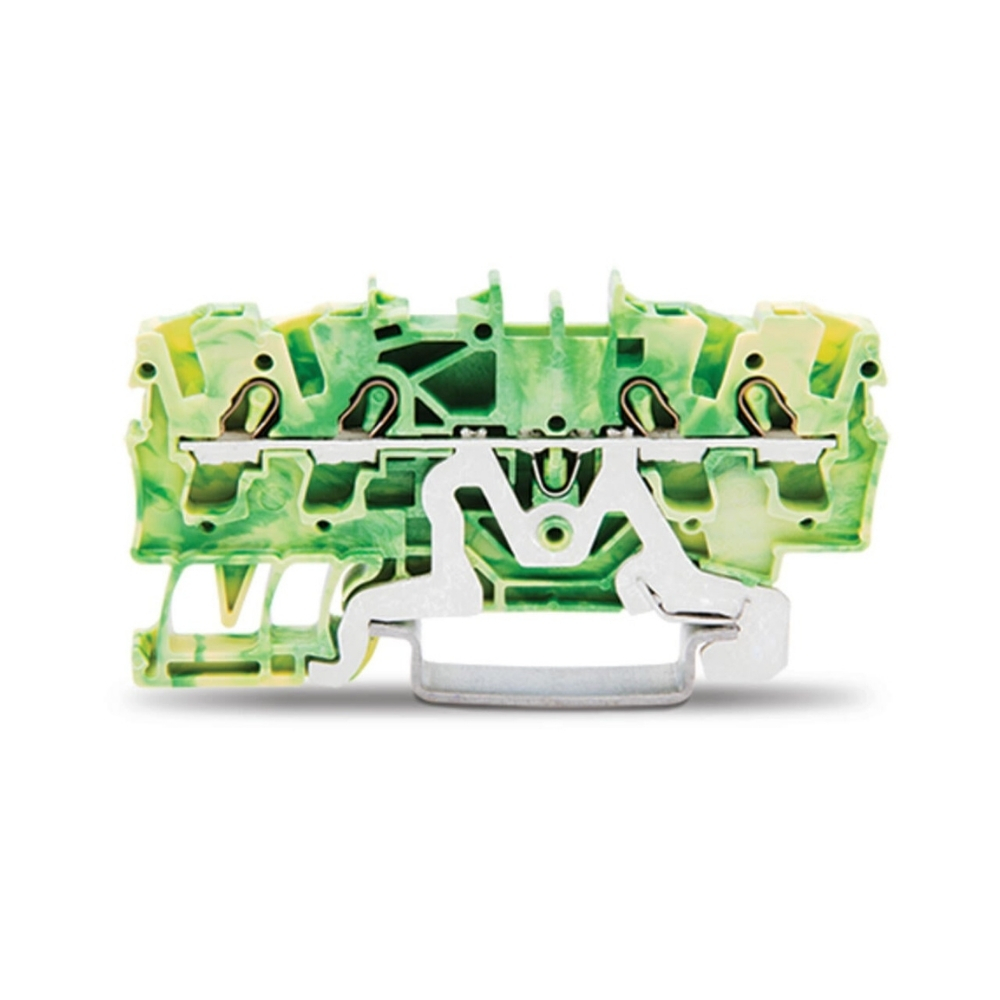

The TOPJOB S ground terminal block (Item No. 2002‑1407) in green‑yellow provides robust earthing connections via its integrated contact foot, ensuring both electrical and mechanical stability to the DIN‑35 rail. Featuring four Push‑in CAGE CLAMP® clamping points on a single level, it offers fast, tool‑free insertion of solid, stranded and ferruled conductors (0.25–4 mm²). Front‑entry wiring and two jumper slots simplify potential distribution. Engineered from flame‑retardant PA66 and certified to railway‑grade and Ex eb IIC Gb standards, it excels in industrial, building‑installation and hazardous‑area applications.
Key Features
-
Integrated rail earthing: Direct electrical/mechanical link to DIN‑35 rail
-
Push‑in CAGE CLAMP®: Universal, tool‑free connection for all conductor types
-
High conductor capacity: Four clamping points, two jumper slots, one potential level
-
Broad conductor range: 0.25–4 mm² solid/stranded; ferruled up to 2.5 mm²
-
Compact front‑entry design: 5.2 × 69.9 × 39.5 mm footprint
-
Rugged housing: PA66 (UL94 V‑0), green‑yellow
-
Railway & Ex certified: DIN EN 50155, DIN EN 61373; ATEX/PTB 03 ATEX 1162 U / IECEx PTB 03.0004U
Specifications
| Category | Parameter | Value |
|---|---|---|
| Electrical Data | Standard (IEC/EN 60947‑7‑2) | Overvoltage Cat. III/III/II; Pollution 3/2/2 |
| Ex Approvals | ATEX PTB 03 ATEX 1162 U / IECEx PTB 03.0004U (Ex eb IIC Gb) | |

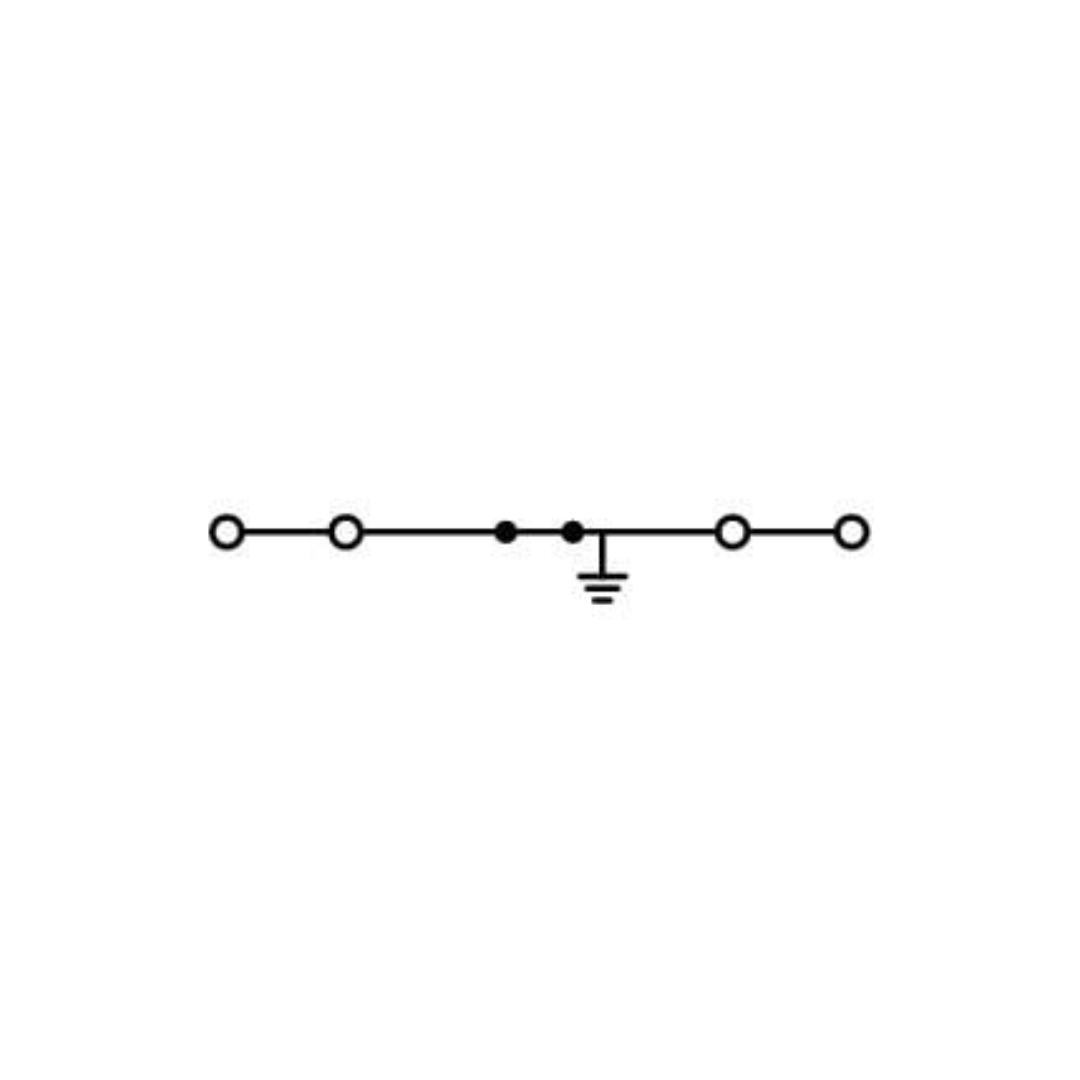

| Connection Data | Clamping Units / Potentials / Levels / Jumper Slots | 4 / 1 / 1 / 2 |
| Technology / Actuation | Push‑in CAGE CLAMP®; operating tool | |
| Conductors (solid/stranded) / (ferruled) | 0.25–4 mm² (22–12 AWG) / 0.25–2.5 mm² (22–14 AWG) | |
| Strip Length / Wiring Direction | 10–12 mm (0.39–0.47 in) / Front‑entry | |

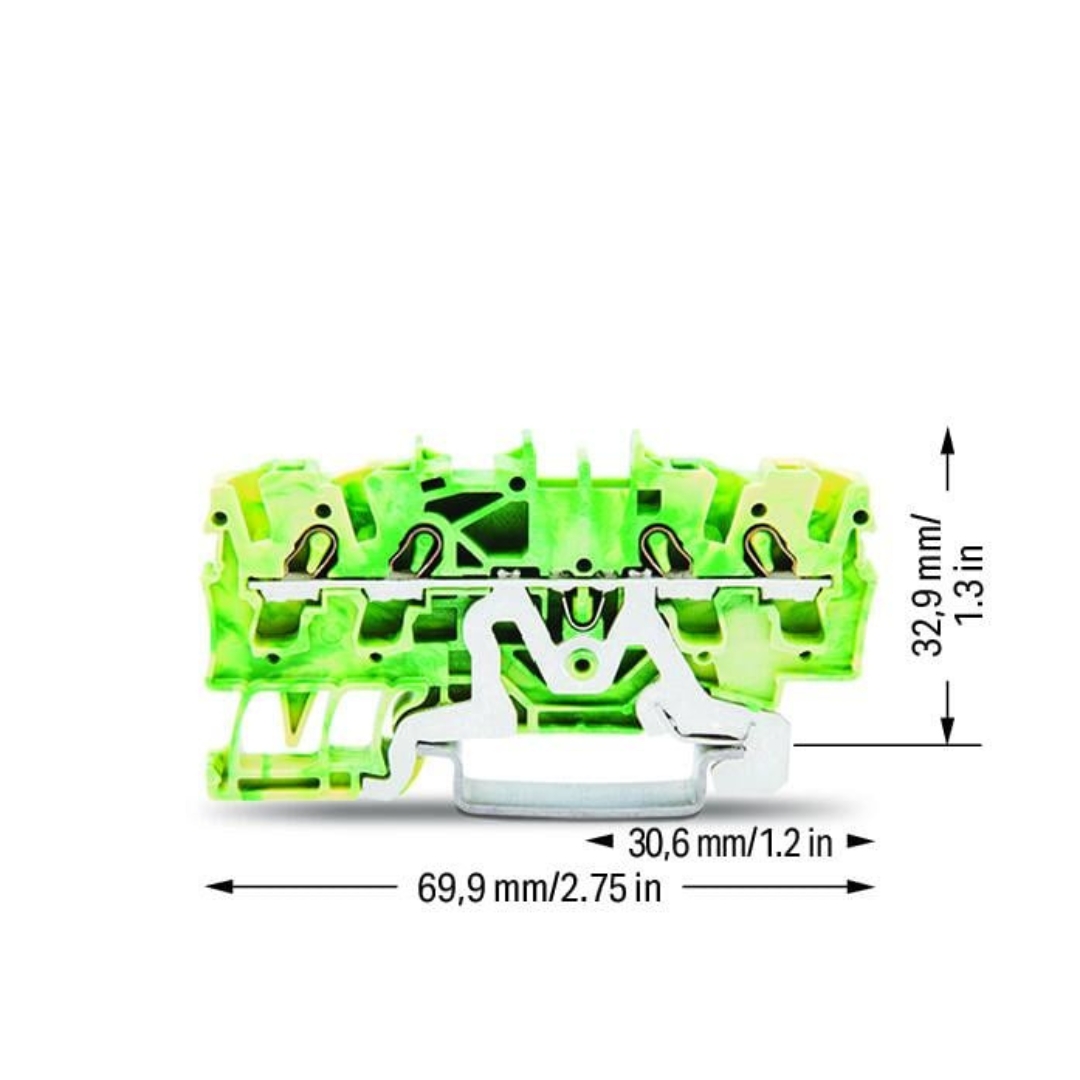

| Physical Data | Width / Height / Depth from Rail‑Edge / Depth | 5.2 mm / 69.9 mm / 32.9 mm / 39.5 mm |
| Mechanical Data | Mounting Type / Marking Level | DIN‑35 rail snap‑on / Center & side |
| Material Data | Note | See material specifications here |
| Color / Material Group / Housing Material | Green‑yellow / I / Polyamide (PA66) | |
| Flammability (UL94) / Fire Load / Weight | V‑0 / 0.152 MJ / 10.4 g | |
| Environmental & Testing | Processing / Continuous Op. Temp. / Railway Tests | –35 … +85 °C / –60 … +105 °C; DIN EN 50155; DIN EN 61373 passed |
| Vibration, Shock & Monitoring | 5 Hz–150 Hz @ 0.572 g, 5 h; half‑sine 5 g/30 ms; tests passed | |
| Commercial Data | Product Group / PU / Packaging / Origin / GTIN / Tariff | 22 (TOPJOB S) / 100 pcs / Box / DE / 4017332999311 / 8536904000 |
| Classification | UNSPSC / eCl@ss 10.0 & 9.0 / ETIM 9.0 & 8.0 / ECCN | 39121410 / 27‑14‑11‑41 / EC000901 / No US Classification |
| Compliance | RoHS Status | Compliant, no exemption |
