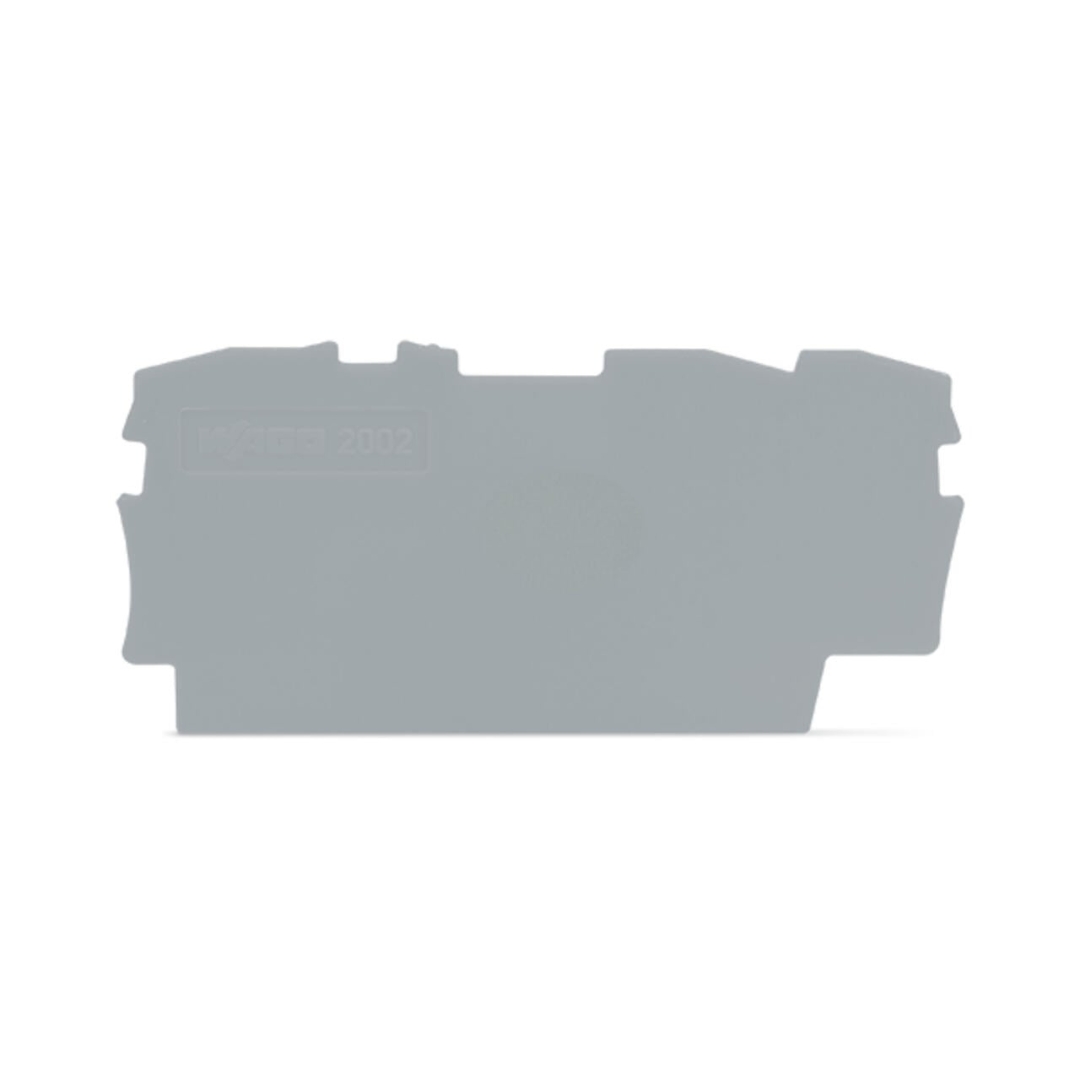

2002-1391-WAGO | End and intermediate plate; 0.8 mm thick; gray

2002-1391-WAGO | End and intermediate plate; 0.8 mm thick; gray

$ 1.17

The TOPJOB S snap‑on terminal block in neutral gray delivers a compact, reliable connection solution for high‑density wiring in industrial and railway environments. With an ultra‑narrow 0.8 mm pitch and a slim 59 mm profile, it maximizes DIN‑rail space while ensuring secure terminations. Housed in flame‑retardant PA66 (UL94 V‑0) and tested to rigorous DIN EN 50155 and DIN EN 61373 standards, this 1.5 g terminal block stands up to extreme vibration, shock and temperature cycles—ideal for rolling stock electronics, control cabinets and other mission‑critical systems.

Available on backorder

SKU: 2002-1391 Categories: , ,

Product Description

The TOPJOB S snap‑on terminal block in neutral gray delivers a compact, reliable connection solution for high‑density wiring in industrial and railway environments. With an ultra‑narrow 0.8 mm pitch and a slim 59 mm profile, it maximizes DIN‑rail space while ensuring secure terminations. Housed in flame‑retardant PA66 (UL94 V‑0) and tested to rigorous DIN EN 50155 and DIN EN 61373 standards, this 1.5 g terminal block stands up to extreme vibration, shock and temperature cycles—ideal for rolling stock electronics, control cabinets and other mission‑critical systems.

Key Features

  • Ultra‑slim 0.8 mm pitch: Optimizes DIN‑rail density

  • Snap‑on mounting: Tool‑free installation onto DIN‑35 rails

  • PA66 housing: UL94 V‑0 flame rating for enhanced safety

  • Railway‑grade tested: Compliant with DIN EN 50155 & DIN EN 61373

  • Low fire load: 0.044 MJ minimizes combustible energy

  • Lightweight design: Just 1.5 g per unit

  • RoHS compliant: Environmentally friendly, no exemptions

Specifications

Category Parameter Value
Physical Data Width 0.8 mm (0.031 in)
Height 59 mm (2.323 in)
Depth 28.9 mm (1.138 in)
Mechanical Data Mounting Type Snap‑on onto DIN‑35 rail
Material Data Note See material specifications here
Color Gray
Material Group I
Insulation Material (main housing) Polyamide (PA66)
Flammability Class (UL94) V‑0
Fire Load 0.044 MJ
Weight 1.5 g
Environmental & Testing Electronic Equipment (DIN EN 50155) VDE 0115‑200:2022‑06
Shock & Vibration (DIN EN 61373) VDE 0115‑0106:2011‑04
• Noise‑like Vibration 5 Hz–150 Hz, 0.572 g, 5 h per axis
• Shock Half‑sine, 5 g, 30 ms, 3 pos./3 neg. per axis
Contact Fault & Voltage Drop Monitoring (before/after each axis) Passed
Commercial Data Product Group 22 (TOPJOB S)
PU (SPU) 100 pcs (25 pcs inner packs)
Packaging Type Box
Country of Origin CN (China)
GTIN 4055143234214
Customs Tariff Number 8538906000
Classification UNSPSC 39121702
eCl@ss 10.0 & 9.0 27‑14‑11‑33
ETIM 9.0 & 8.0 EC000886
ECCN No US Classification
Compliance RoHS Status Compliant, no exemption
Weight 0.003307 lbs
Dimensions 1.138 × 0.031 × 2.323 in
