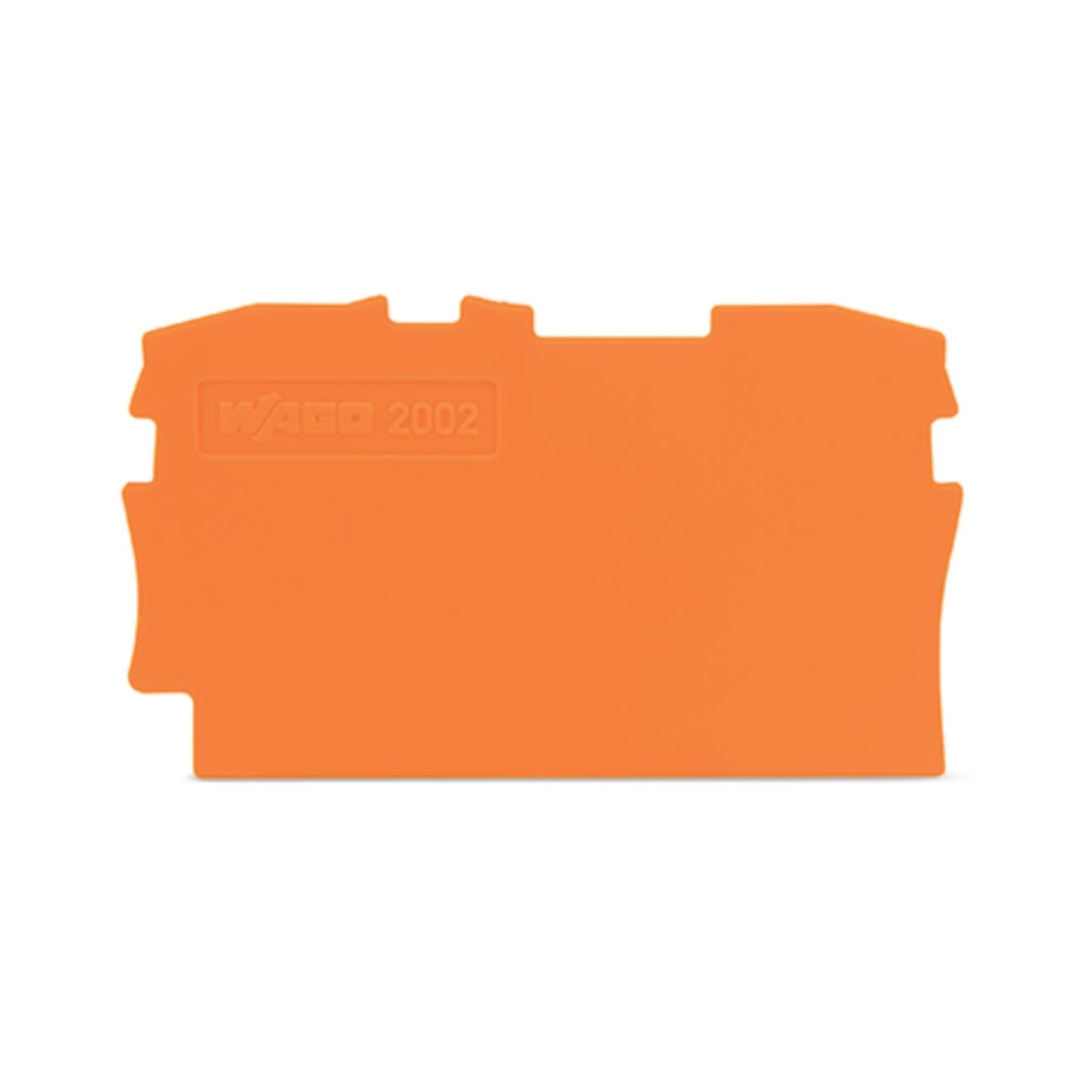

2002-1292-WAGO | End and intermediate plate; 0.8 mm thick; orange

2002-1292-WAGO | End and intermediate plate; 0.8 mm thick; orange

$ 1.14

The TOPJOB S snap‑on terminal block in vibrant orange is engineered for ultra‑high‑density PCB applications and industrial installations. With a mere 0.8 mm pitch, it maximizes wiring connections in minimal space. Constructed from flame‑retardant PA66 and rigorously tested to railway standards (DIN EN 50155, DIN EN 61373), it offers exceptional resistance to vibration, shock and thermal stress—ideal for rolling stock, control panels and other mission‑critical systems.

97 in stock (can be backordered)

SKU: 2002-1292 Categories: , ,

Product Description

The TOPJOB S snap‑on terminal block in vibrant orange is engineered for ultra‑high‑density PCB applications and industrial installations. With a mere 0.8 mm pitch, it maximizes wiring connections in minimal space. Constructed from flame‑retardant PA66 and rigorously tested to railway standards (DIN EN 50155, DIN EN 61373), it offers exceptional resistance to vibration, shock and thermal stress—ideal for rolling stock, control panels and other mission‑critical systems.

Key Features

  • Ultra‑slim footprint: 0.8 mm (0.031 in) pitch

  • Snap‑on mounting: Quick, tool‑free installation

  • Rugged housing: Polyamide (PA66) with UL94 V‑0 rating

  • Railway‑grade testing: Compliant with DIN EN 50155 & DIN EN 61373

  • Low fire load: 0.036 MJ for enhanced safety

  • Lightweight: Only 1.2 g per unit

  • RoHS compliant: Environmentally friendly, no exemptions

Specifications

Category Parameter Value
Physical Data Width 0.8 mm (0.031 in)
Height 48.3 mm (1.902 in)
Depth 28.9 mm (1.138 in)
Mechanical Data Mounting Type Snap‑on type
Material Data Note (material data) See material specifications here
Color Orange
Material Group I
Insulation Material (main housing) Polyamide (PA66)
Flammability Class (UL94) V‑0
Fire Load 0.036 MJ
Weight 1.2 g
Environmental & Testing Electronic Equipment (DIN EN 50155) VDE 0115‑200:2022‑06
Shock & Vibration (DIN EN 61373) VDE 0115‑0106:2011‑04
• Noise‑like Vibration 5 Hz–150 Hz, 0.572 g, 5 h per axis
• Shock Half‑sine, 5 g, 30 ms, 3 pos./3 neg. per axis
Contact Fault & Voltage Drop Monitoring (before/after each axis) Passed
Commercial Data Product Group 22 (TOPJOB S)
PU (SPU) 100 pcs (25 pcs inner packs)
Packaging Type Box
Country of Origin CN (China)
GTIN 4055143234207
Customs Tariff Number 8538906000
Classification UNSPSC 39121702
eCl@ss 10.0 & 9.0 27‑14‑11‑33
ETIM 9.0 & 8.0 EC000886
ECCN No US Classification
Compliance RoHS Status Compliant, no exemption
Weight 0.002646 lbs
Dimensions 1.138 × 0.031 × 1.902 in
