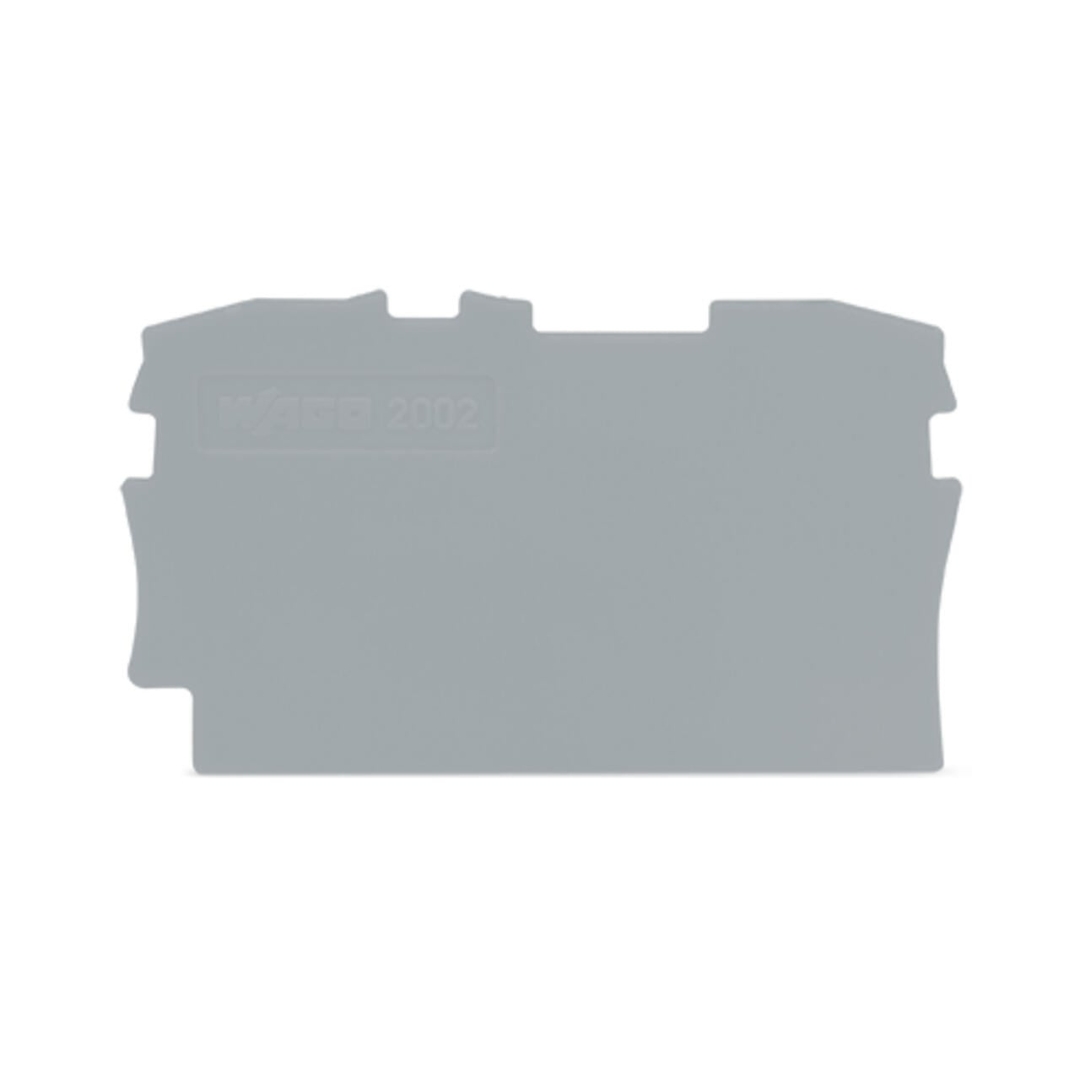

2002-1291-WAGO | End and intermediate plate; 0.8 mm thick; gray

2002-1291-WAGO | End and intermediate plate; 0.8 mm thick; gray

$ 1.11

The TOPJOB S snap‑on terminal block is designed for compact, high‑reliability interconnections in demanding electrical and electronic applications. Its ultra‑narrow 0.8 mm pitch saves valuable PCB real‑estate, while the robust polyamide (PA66) housing and UL94 V‑0 flame rating ensure safe operation under harsh conditions. Engineered and tested to railway‑grade standards (DIN EN 50155, DIN EN 61373), this gray terminal block withstands extensive vibration, shock and service‑life stress, making it ideal for rolling stock, industrial control cabinets and other mission‑critical installations.

92 in stock (can be backordered)

SKU: 2002-1291 Categories: , ,

Product Description

The TOPJOB S snap‑on terminal block is designed for compact, high‑reliability interconnections in demanding electrical and electronic applications. Its ultra‑narrow 0.8 mm pitch saves valuable PCB real‑estate, while the robust polyamide (PA66) housing and UL94 V‑0 flame rating ensure safe operation under harsh conditions. Engineered and tested to railway‑grade standards (DIN EN 50155, DIN EN 61373), this gray terminal block withstands extensive vibration, shock and service‑life stress, making it ideal for rolling stock, industrial control cabinets and other mission‑critical installations.

Key Features

  • Ultra‑compact design: 0.8 mm pitch for maximum board density

  • Snap‑on mounting: Fast installation without tools

  • High‑performance material: Polyamide (PA66) housing (UL94 V‑0)

  • Railway‑approved: Meets DIN EN 50155 and DIN EN 61373 shock & vibration requirements

  • Low fire load: 0.036 MJ – minimizes energy in case of fire

  • Lightweight: Only 1.2 g per unit

  • RoHS compliant: Environmentally friendly, lead‑free construction

Specifications

Category Parameter Value
Physical Data Width 0.8 mm (0.031 in)
Height 48.3 mm (1.902 in)
Depth 28.9 mm (1.138 in)
Mechanical Data Mounting Type Snap‑on onto DIN rails or PCB adapter
Material Data Housing Material Polyamide (PA66)
Color Gray
Flammability UL94 V‑0
Fire Load 0.036 MJ
Weight 1.2 g
Environmental & Testing Temperature & Vibration (DIN EN 50155) VDE 0115‑200:2022‑06
Shock & Vibration (DIN EN 61373) VDE 0115‑0106:2011‑04
• Noise‑like Vibration f=5–150 Hz, 0.572 g, 5 h per axis
• Shock Half‑sine, 5 g, 30 ms, 3 pos./3 neg. per axis
Commercial Data Product Group 22 (TOPJOB S)
Packaging Box of 100 pcs (5 × 25‑pc inner packs)
Country of Origin China (CN)
GTIN 4055143234085
Customs Tariff Number 8538906000
Classification UNSPSC 39121702
eCl@ss 10.0 & 9.0 27‑14‑11‑33
ETIM 8.0 & 9.0 EC000886
ECCN No US Classification
Compliance RoHS Status Compliant, no exemption
Weight 0.002646 lbs
Dimensions 1.138 × 0.031 × 1.902 in
