2002-1207-WAGO | 2-conductor ground terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Description

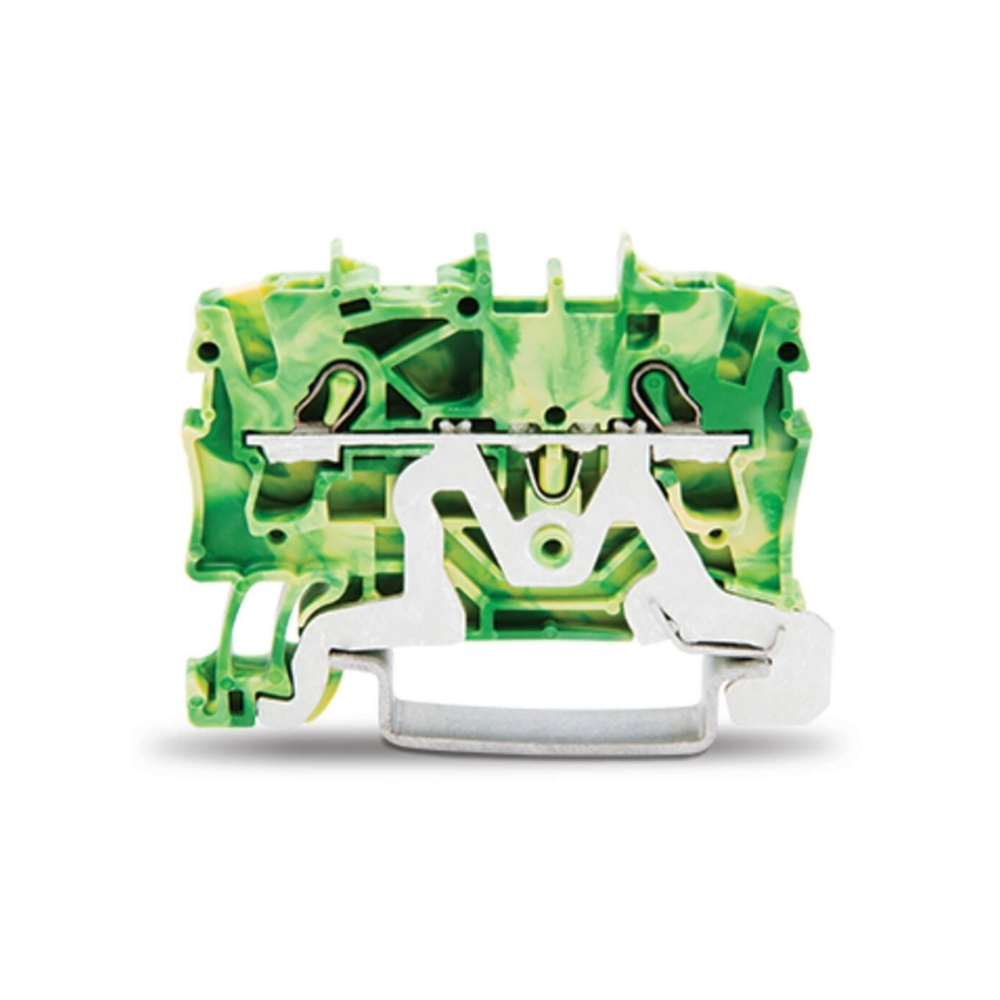

Engineered for dependable grounding in any industrial or building installation, the TOPJOB® S Ground Terminal Block (Item No. 2002‑1207) offers lightning‑fast, tool‑free connections between conductors and your DIN‑35 rail. Its integrated mounting foot ensures both electrical and mechanical stability, while Push‑in CAGE CLAMP® technology lets you insert solid or fine‑stranded copper conductors (0.25–4 mm²) directly—no screwdriver required. With a compact footprint and a distinctive green‑yellow PA66 housing, this terminal block meets rigorous railway‑industry and Ex‑application standards, delivering safe, secure grounding solutions that install in seconds and stand up to harsh environments.

Features

• Push‑in CAGE CLAMP® Technology
  Universal, tool‑free connection for solid, stranded, and ferruled conductors—just push in and go.

• Integrated Mounting Foot
  Direct rail bonding for guaranteed electrical continuity and robust mechanical anchoring.

• High‑Visibility Housing
  Green‑yellow polyamide (PA66) shell for quick ground‑block identification in dense terminal assemblies.

• Dual Jumper Slots
  Two slots per block simplify potential distribution without additional accessories.

• Compact, Space‑Saving Design

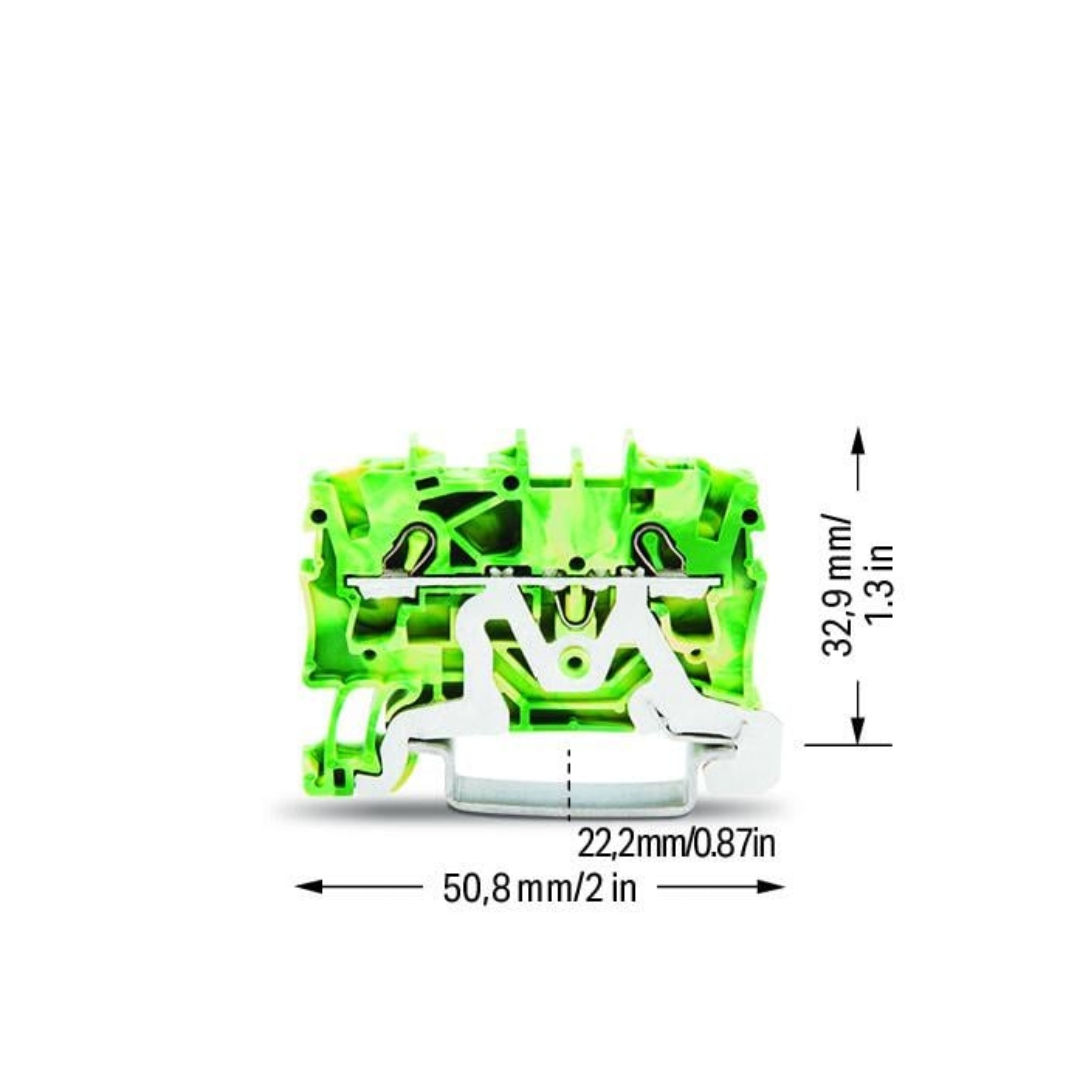

  Ultra‑slim profile (5.2 × 50.8 × 39.5 mm) maximizes usable rail real estate.

• Wide Operating Temperatures
  Rated for continuous operation from –60 °C to +105 °C, handling extreme heat and cold.

• Railway‑Grade Durability
  Certified to EN 50155 and EN 61373 for shock, vibration, and long‑term service life under rolling‑stock conditions.

• Ex‑Application Ready
  Refer to technical documentation for hazardous‑area suitability—ideal for Ex e installations.

Specifications
