2002-1201-WAGO | 2-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray

Description

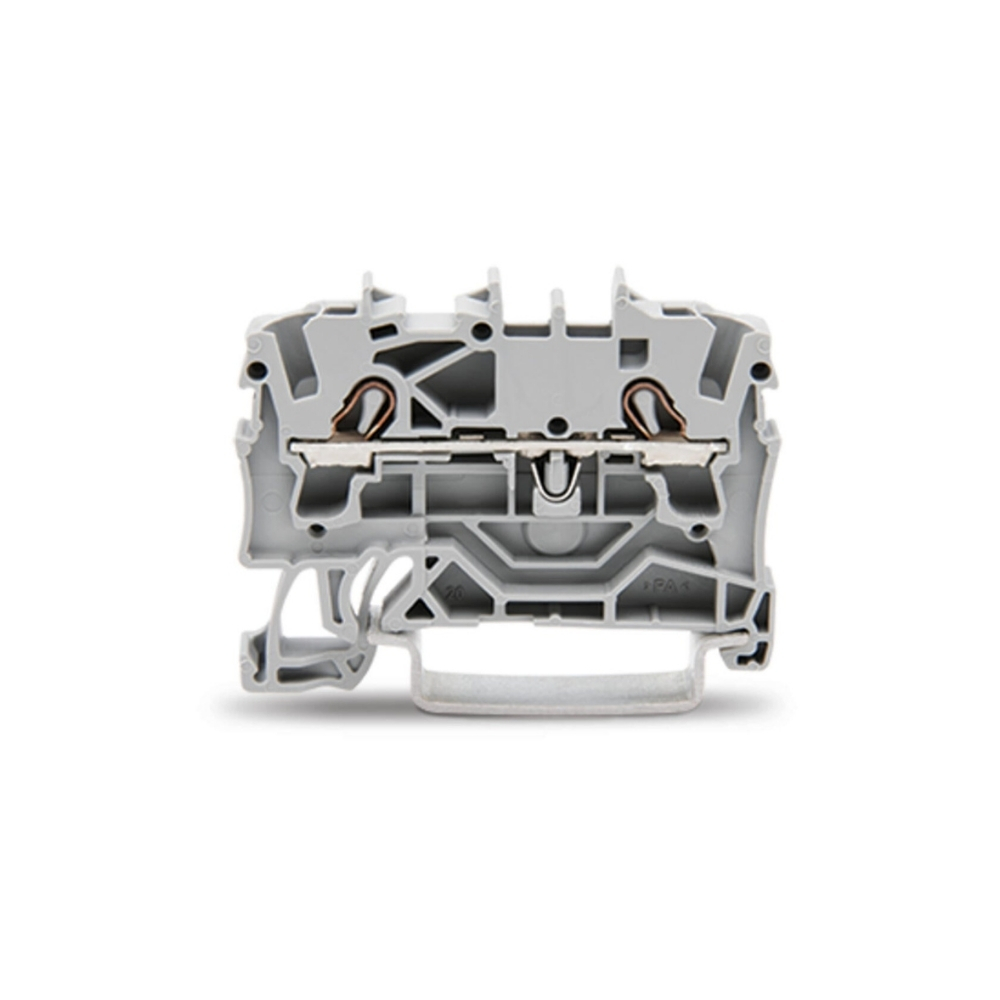

The TOPJOB® S Through Terminal Block (Item No. 2002-1201) delivers fast, reliable, and tool-free conductor connections for industrial control panels, building installations, and Ex e applications. Its compact grey PA66 housing snaps securely onto any DIN-35 rail and accepts solid or fine-stranded copper conductors (0.25–4 mm²) via Push-in CAGE CLAMP® technology. Tested to IEC, UL, CSA, ATEX/IECEx, and railway-industry standards, it withstands harsh environments, wide temperature swings, and high shock and vibration. Whether you need classic through-wiring or potential distribution, TOPJOB S makes every installation safer and more efficient.

Features

• Push-in CAGE CLAMP® for tool-free insertion of solid, stranded, and ferruled fine-stranded conductors

• High ratings: 800 V/24 A (IEC); 600 V/20 A (UL/CSA); 550 V/22 A (ATEX Ex e)

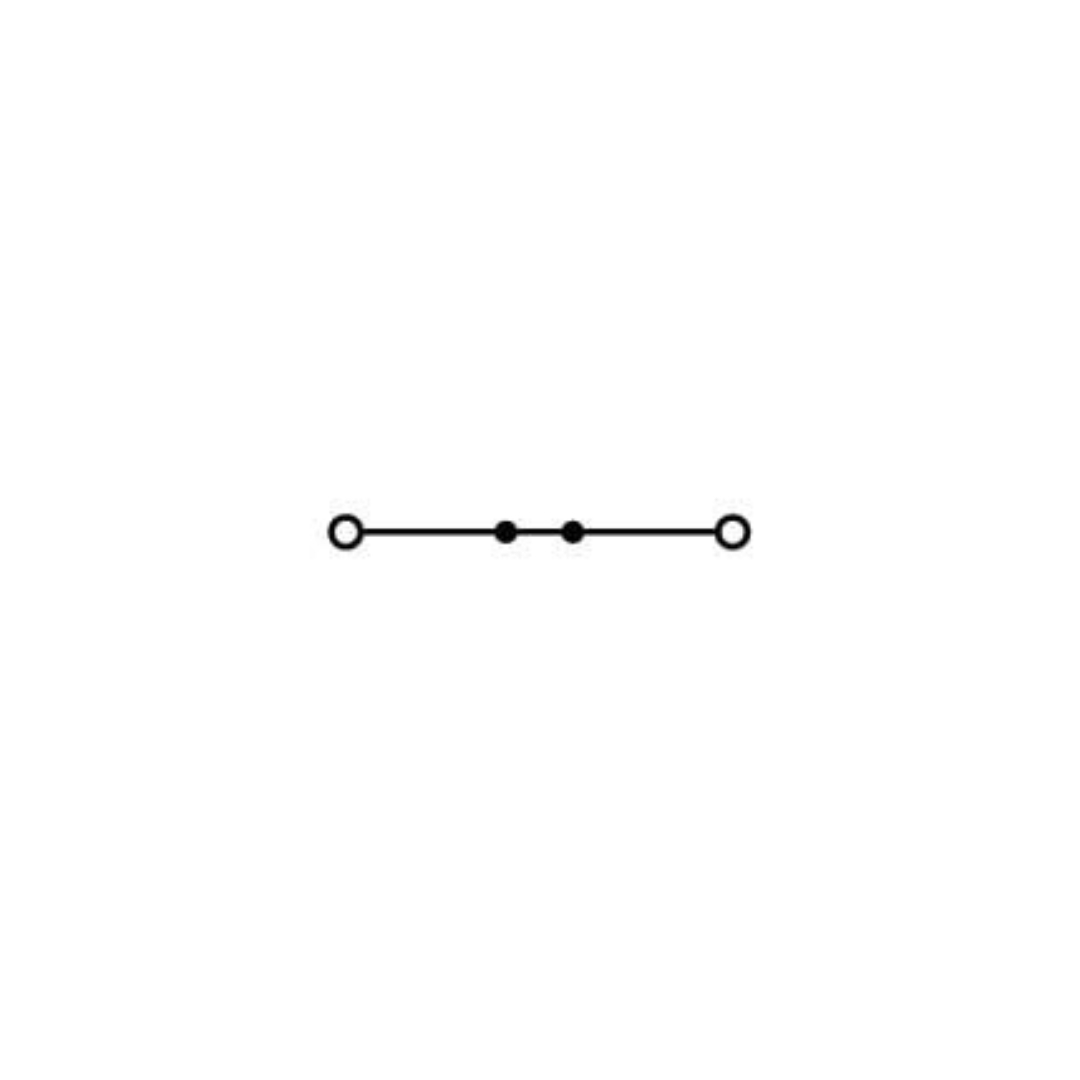

• Dual jumper slots enable quick potential distribution without extra fittings

• Compact footprint (5.2 × 48.5 × 39.5 mm) optimizes panel space

• Wide temperature range: –60 °C to +105 °C continuous operation

• Robust approvals: IEC/EN 60947-7-1, UL 1059, CSA 22.2 No 158, ATEX PTB 03 ATEX 1162 U, IECEx PTB 03.0004 U

• Railway-grade testing per EN 50155 and EN 61373 for shock, vibration, and service-life reliability

• Flammability V-0 (UL 94) and low power loss (0.766 W/pole at 24 A)

Specifications

Electrical Data

• Rated voltage (IEC): 800 V

• Rated current (IEC): 24 A

• Rated voltage (UL/CSA): 600 V

• Rated current (UL/CSA): 20 A

• Overvoltage category: III

• Pollution degree: 3

• Surge voltage: 8 kV

• Power loss: 0.766 W/pole at 24 A

• Resistance: 0.001 Ω (current-dependent)

Connection Data

• Technology: Push-in CAGE CLAMP®

• Clamping units: 2 per potential

• Conductors: 0.25–4 mm² solid; 1–4 mm² stranded; 0.25–2.5 mm² ferruled

• Strip length: 10–12 mm

• Entry: Front-entry wiring

Physical & Mechanical

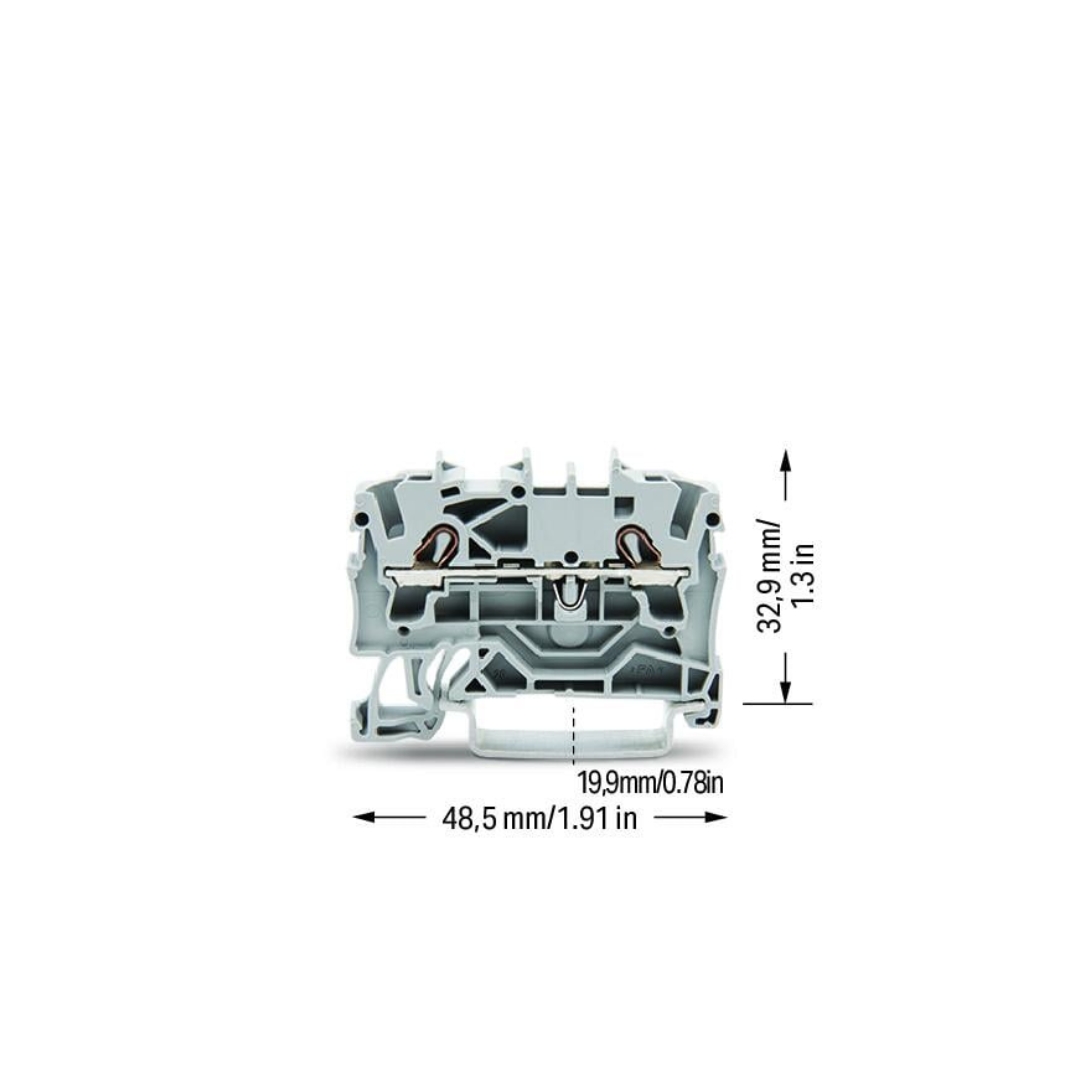

• Dimensions: 5.2 mm W × 48.5 mm H × 39.5 mm D

• Mounting: DIN-35 rail

• Housing material: Polyamide (PA66), gray

• Weight: 5 g

• Flammability: UL 94 V-0

Environmental & Railway Tests

• Operating temp.: –60 °C to +105 °C

• Railway standards: EN 50155 (electronic equipment), EN 61373 (shock & vibration)

• Shock: 5 g, 30 ms; 3 pos./3 neg. per axis

• Vibration: up to 0.572 g, 5 Hz–150 Hz, 5 h per axis

Certifications & Compliance

• IEC/EN 60947-7-1

• UL 1059, CSA 22.2 No 158

• ATEX (Ex eb IIC Gb), IECEx

• RoHS: Compliant

• GTIN: 4017332999168

• Origin: Germany
