1SVR750488R8300 – ABB | CM-MPN.62S THREE-PHASE MON.

Description

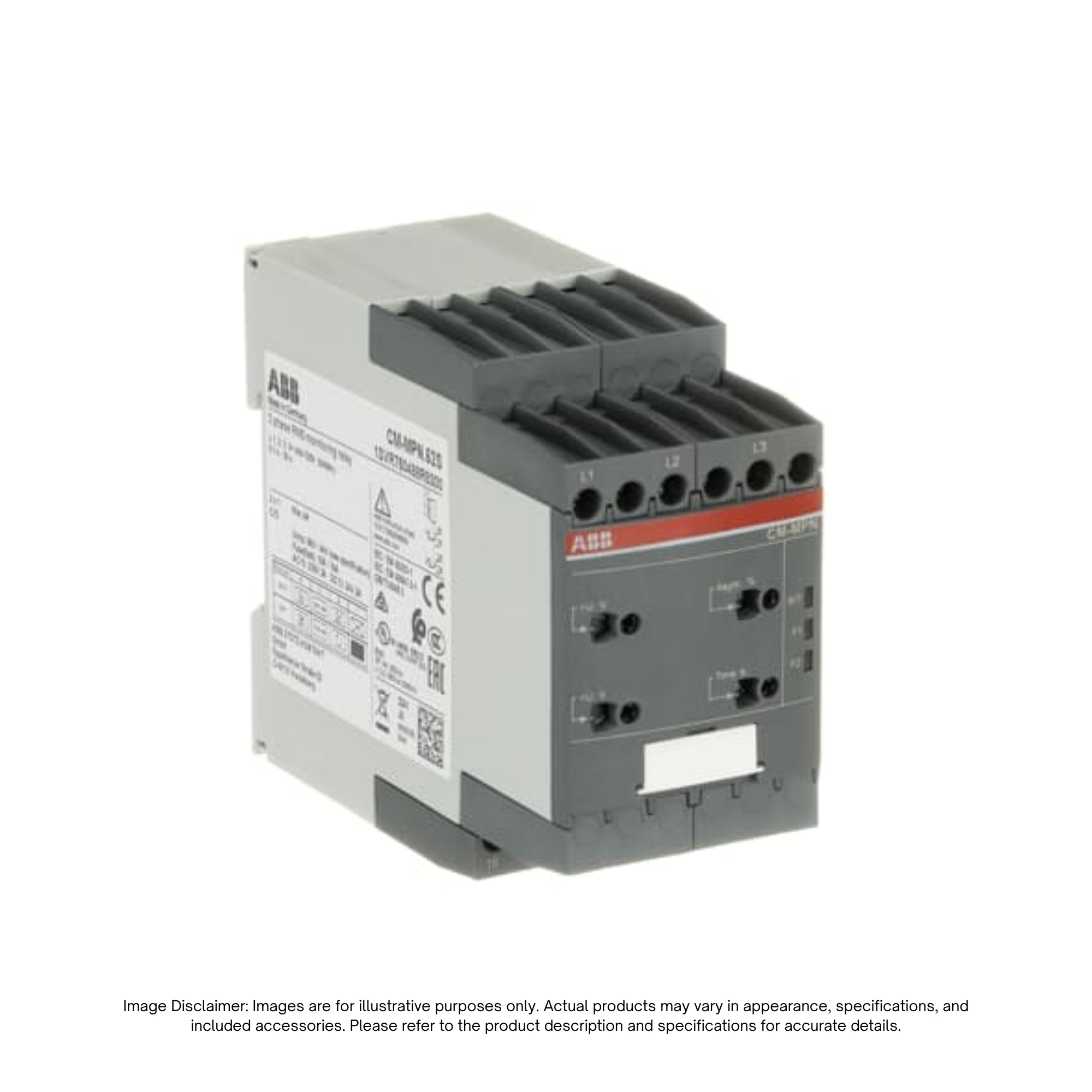

The ABB CM-MPN.62S (Catalog Number: 1SVR750488R8300, EAN/UPC: 4016779851923) is a multifunctional three-phase monitoring relay engineered for high-voltage industrial power distribution systems. Operating across a wide measuring and rated control supply voltage range of 450 to 720 VAC (L-L), this CM-MPN series relay delivers comprehensive grid and line monitoring to protect 3-phase networks and connected equipment from severe power quality faults.

Designed with configurable output contacts (2 x 1 c/o or 1 x 2 c/o) and screw connection terminals, the CM-MPN.62S actively monitors phase failure, phase sequence, over- and undervoltage, and phase unbalance, featuring automatic phase sequence correction and adjustable time delays. Its robust 45 mm DIN-rail enclosure ensures maximum uptime and operational safety in high-voltage industrial motor control and power distribution environments.

Key Features

• Multifunctional Line Monitoring: Integrates phase failure detection, phase sequence monitoring, phase unbalance detection, and over/undervoltage protection in a single unit.
• Automatic Phase Sequence Correction: Automatically corrects phase sequence issues to maintain continuous phase alignment for sensitive loads.
• High Voltage Range (450–720 VAC): Engineered specifically for high-voltage phase-to-phase 3-phase systems up to 720 VAC.
• Configurable Output Contacts: Offers flexible contact setup for 2 x 1 c/o (SPDT) or 1 x 2 c/o (DPDT) output configurations.
• Adjustable Delay Timing: Features a 200 ms start-up delay and adjustable ON or OFF tripping delay from 0.1 to 30 seconds (with 0 s instant option).
• Standard Screw Terminals: Equipping durable, vibration-resistant screw terminals for reliable conductor clamping.

Specifications
