Description

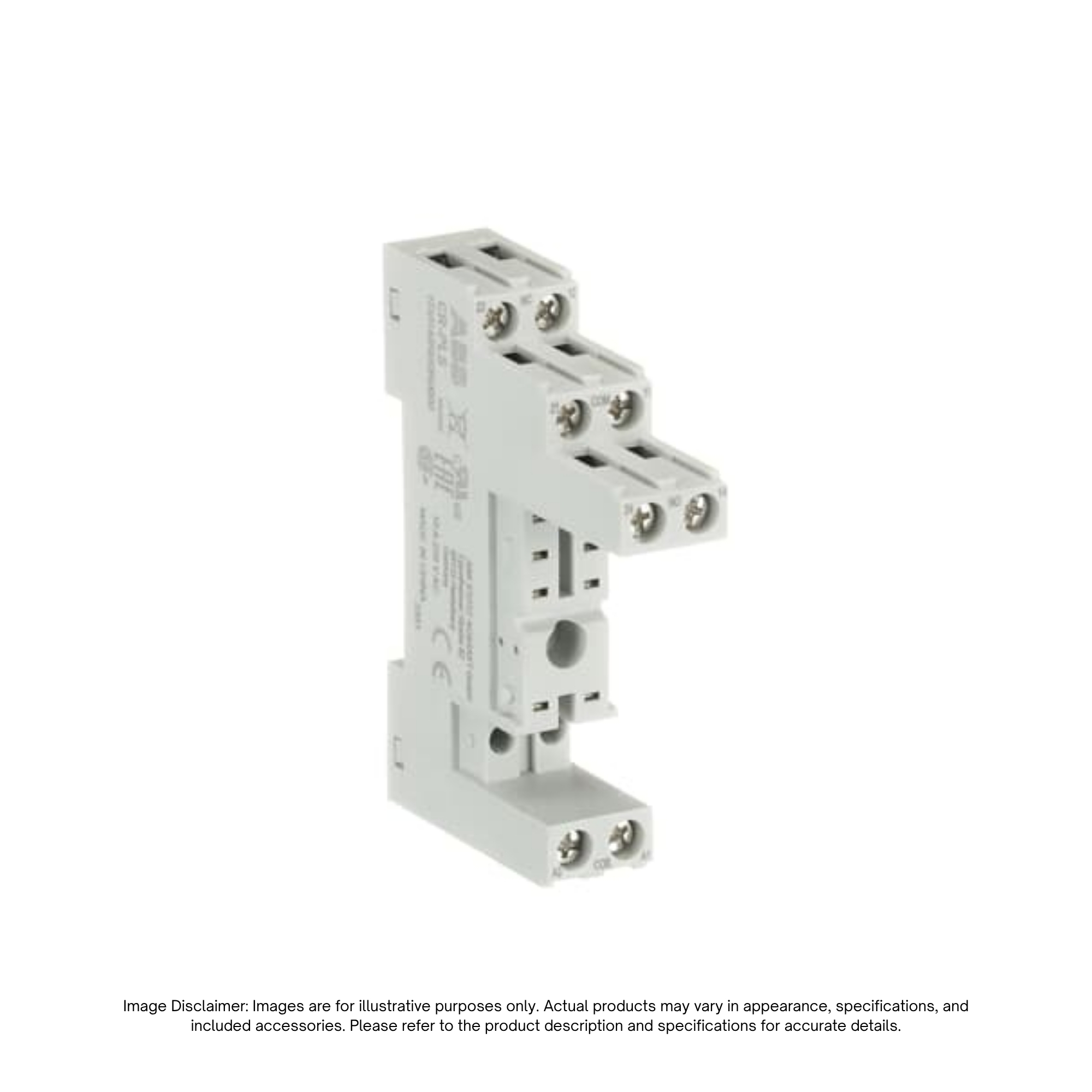

The ABB CR-PLS (Product ID: 1SVR405650R0000, EAN: 4013614528569) is a DIN rail-mountable logical socket designed for ABB’s CR-P (PCB) pluggable interface relay series. Engineered with safety isolation, this socket supports CR-P relays configured with either 1 changeover (1 c/o / SPDT) or 2 changeover (2 c/o / DPDT) output contacts.
Featuring durable screw connection terminals, the CR-PLS socket cleanly separates input coil connections from output contact connections for logical wiring layouts. It integrates seamlessly with optional pluggable function modules (such as diode, LED, or RC modules), retaining plastic holders, and identification markers for customized control cabinet installations.
Key Features
- CR-P Relay Compatibility: Designed specifically to hold 1 c/o or 2 c/o CR-P pluggable interface relays.
- Logical Terminal Arrangement: Provides clear logical separation between control coil terminals and switching contact terminals for simplified panel wiring.
- Safety Isolation: Features built-in safety isolation between control and load circuits to protect upstream automation devices.
- Screw Connection Terminals: Equipped with robust screw terminals for secure, low-resistance conductor wiring.
- Modular Accessory Support: Accepts pluggable function protection modules, retaining clips, and marker tabs.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Type / Model | CR-PLS |
| Brand / Manufacturer | ABB |
| Product ID | 1SVR405650R0000 |
| EAN Code | 4013614528569 |
| Component Type | Logical Socket for Interface Relays |
| Relay Series Compatibility | ABB CR-P (PCB) Relays (1 c/o or 2 c/o) |
| Terminal Type | Screw Terminals |
| Mounting Type | 35mm DIN Rail Mount / Screw Mount |
| Isolation | Safety Isolation between input and output circuits |
| Primary Applications | DIN rail relay sockets, PLC I/O interface wiring, panel isolation, and automation control systems |
