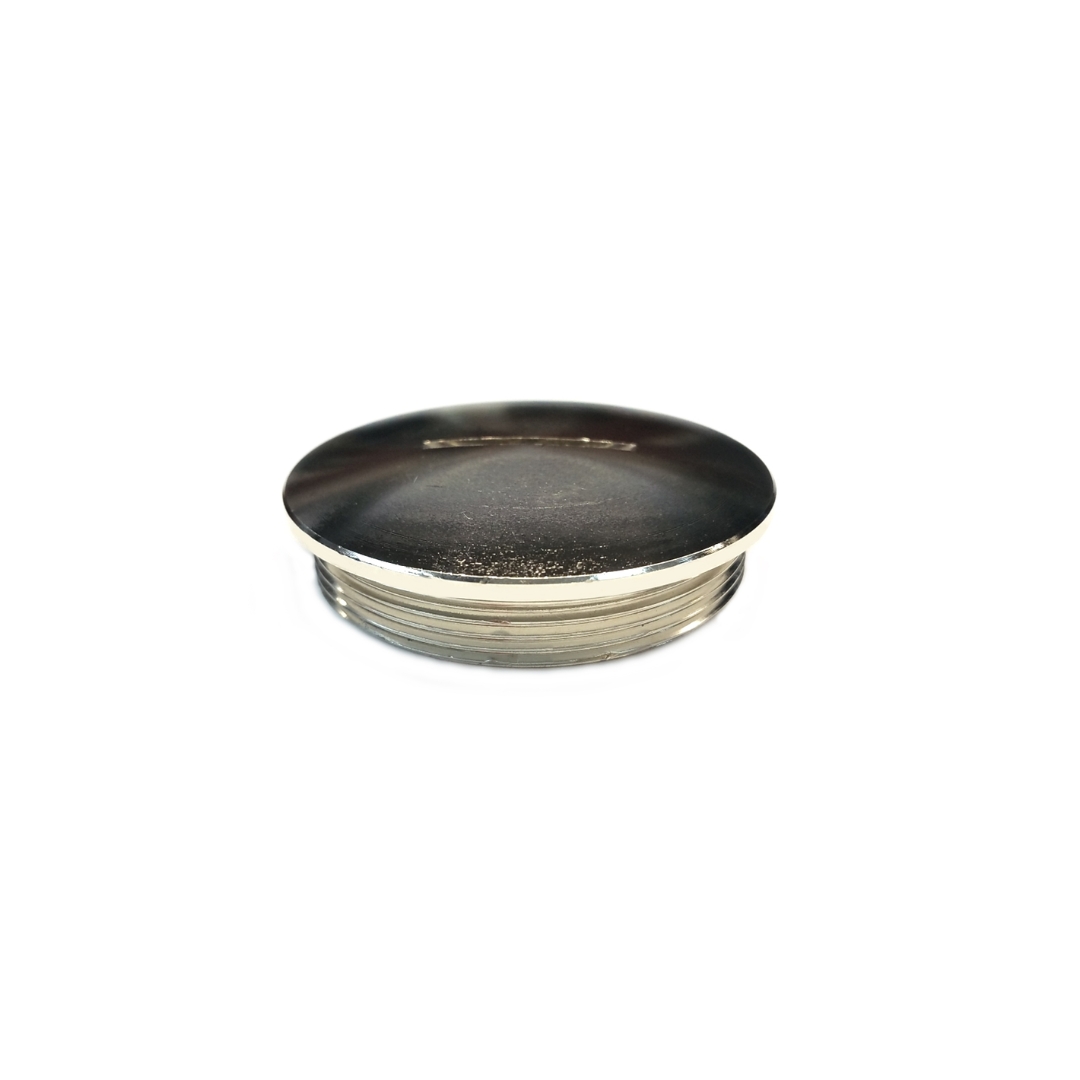

188.725 – ITC | M25 brass nickel plated stopping plug

Description

The ITC 188.725 is a high-grade M25 brass nickel-plated stopping plug (blanking plug) engineered to securely seal unused metric threaded entries in electrical enclosures, junction boxes, and industrial machinery panels. Designed to prevent dust, moisture, and contamination from entering enclosure interiors, this stopping plug ensures environmental protection and panel integrity in harsh industrial setups.

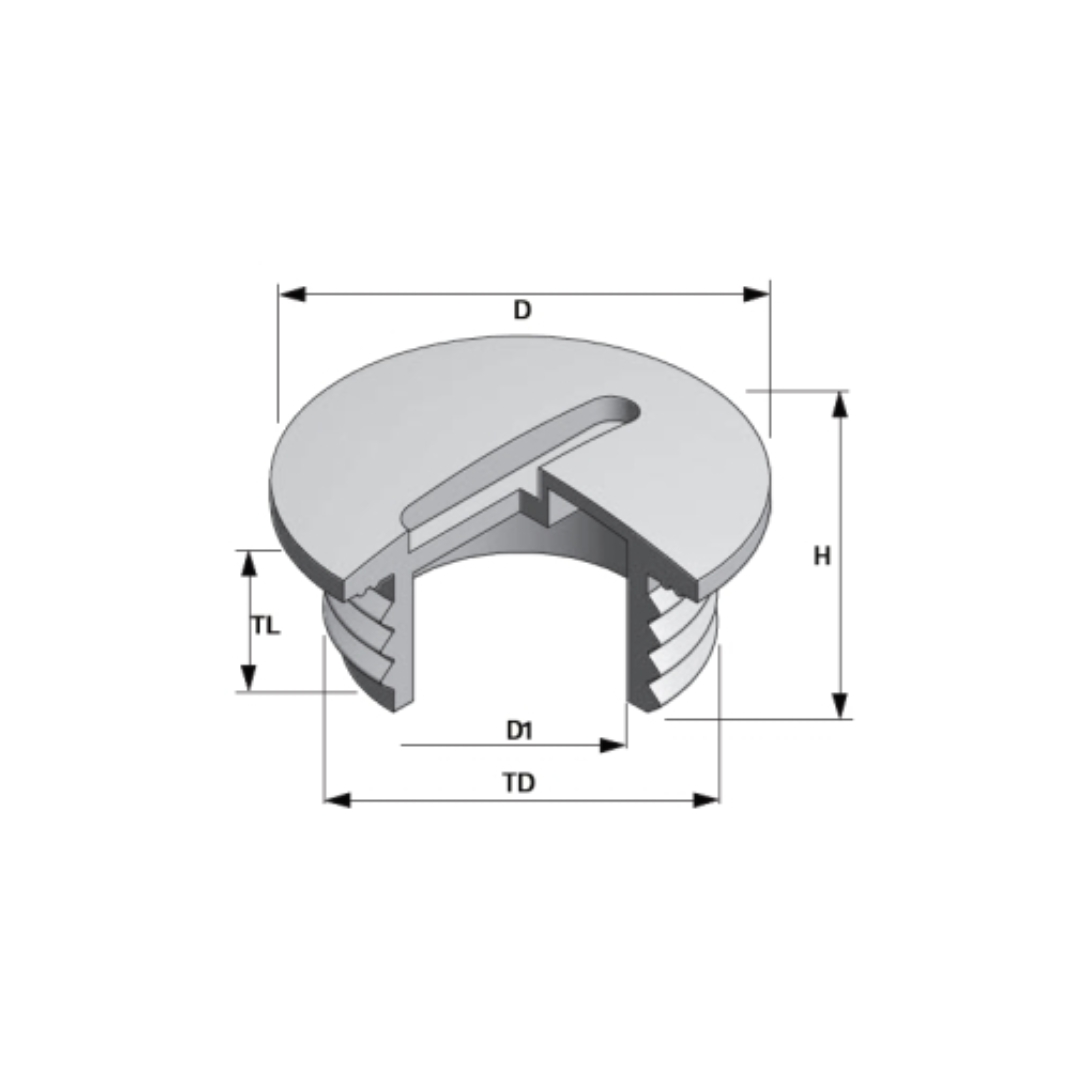

Constructed from premium nickel-plated brass, the 188.725 offers exceptional mechanical strength, chemical resistance, and corrosion protection. It features an M25 thread with a 7.7 mm thread length, a 28 mm head diameter, and a low-profile maximum height of 3 mm for a clean, unobtrusive surface finish. Capable of operating in extreme thermal environments ranging from -60°C to 200°C, it is supplied in convenient packages of 10 pieces for panel assembly efficiency.

Key Features

• Secure Enclosure Sealing: Effectively plugs unused M25 metric threaded knockouts and cable entry points to safeguard internal electronics.
• Nickel-Plated Brass Construction: Delivers superior durability, mechanical toughness, and resistance to environmental corrosion.
• Extreme Temperature Rating: Operates reliably across a wide temperature range of -60°C to 200°C for severe indoor and outdoor deployments.
• Low-Profile Head: Features a 28 mm diameter head with a slim 3 mm outer height for a clean, space-saving panel installation.
• Convenient Packaging: Supplied in cost-effective 10-piece packages ideal for OEM production and field maintenance.
