Adaptive Heating Control for A Church Community

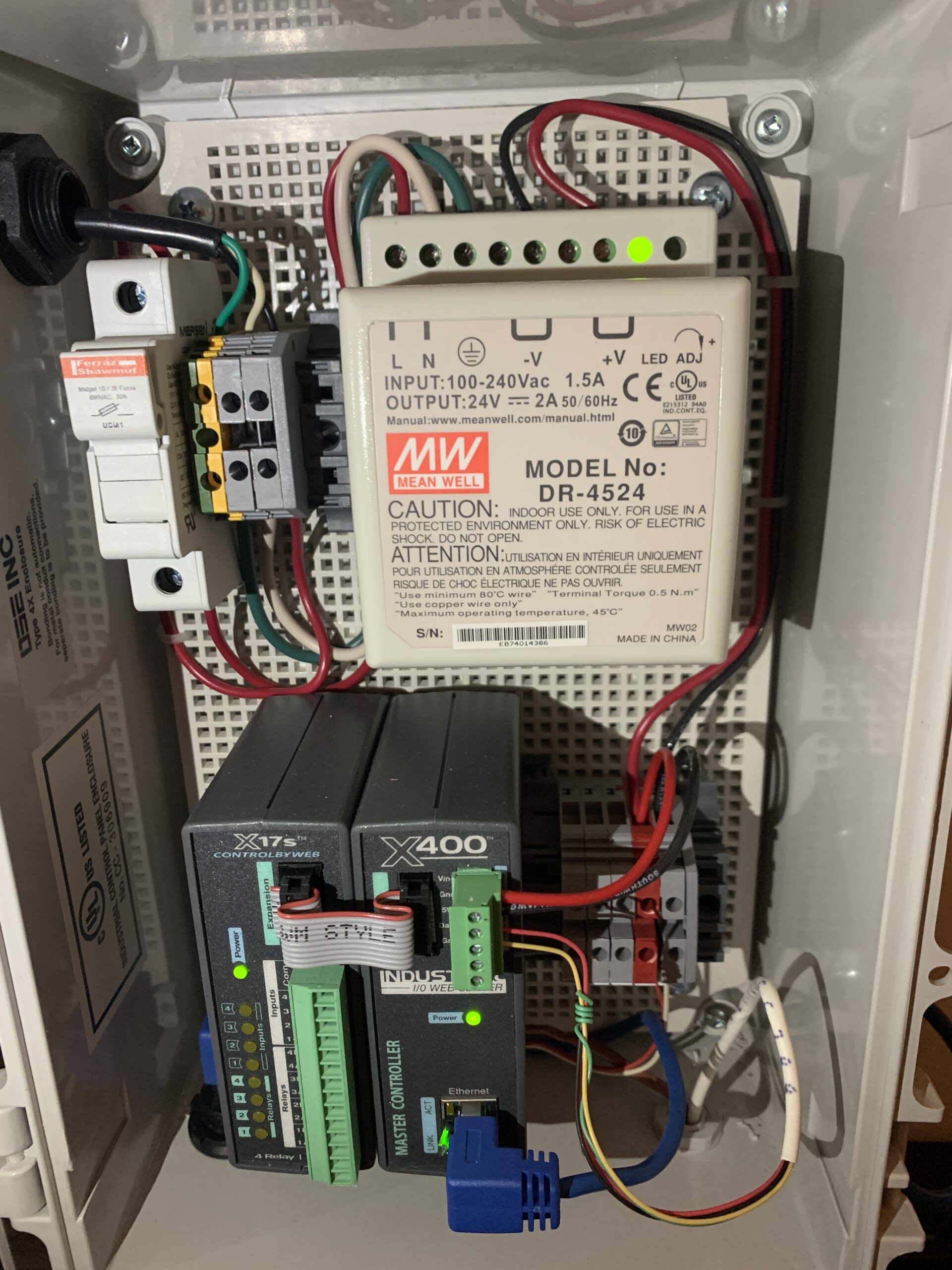

At MacNab Church in Hamilton, Ontario, Dave Nicoll has engineered a heating automation system that balances energy efficiency with the needs of a vibrant community space. By leveraging ControlByWeb’s X-400 controller and X-17S expansion module, Dave’s solution ensures warmth during services while minimizing operational costs—a testament to smart, scalable automation in public settings.

Intelligent Temperature Scheduling

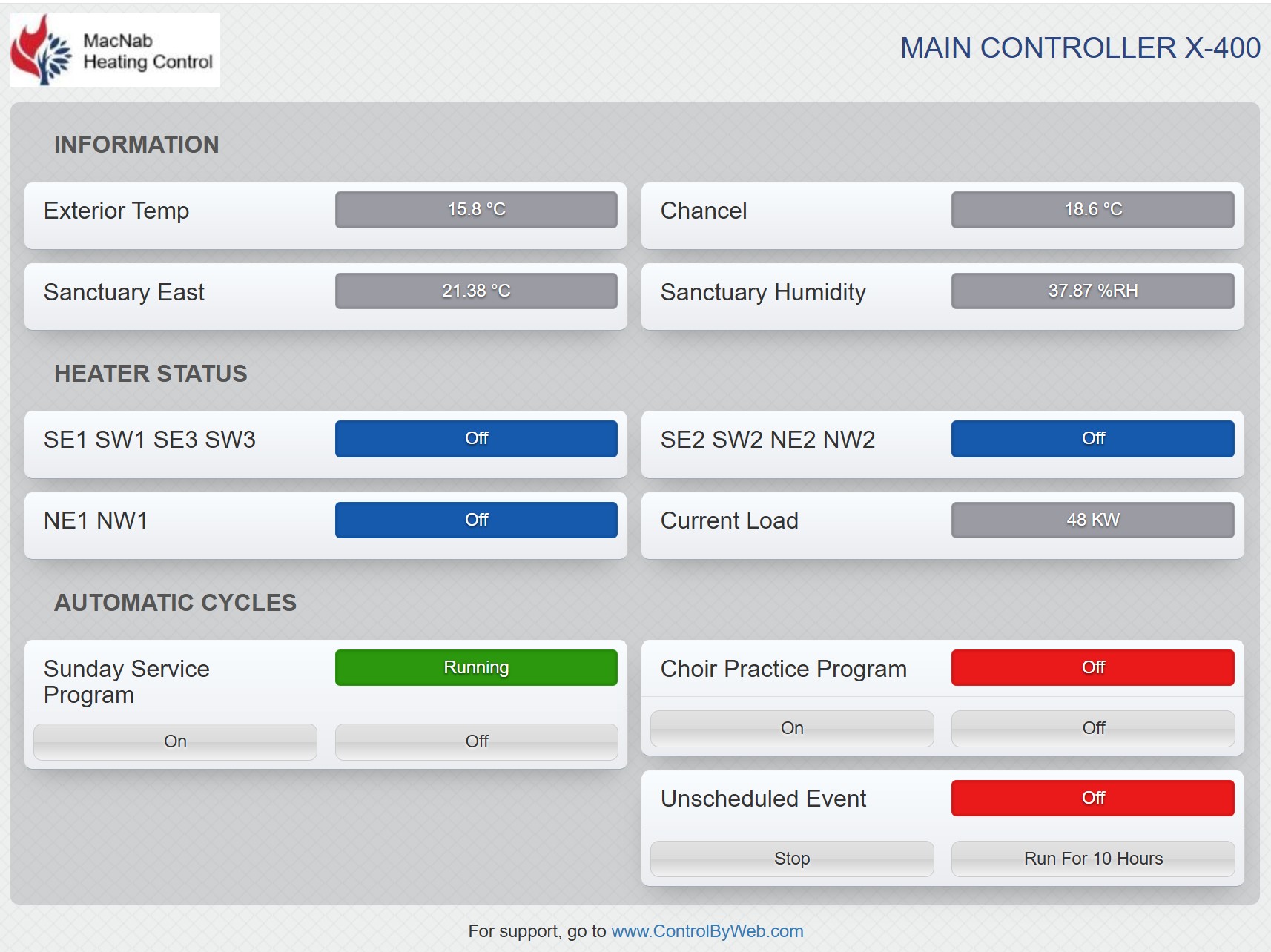

The system maintains a baseline temperature of 14°C during unoccupied hours, automatically ramping up to 21°C for scheduled events such as Sunday services, Thursday choir practices, and manual overrides for unscheduled gatherings. This eliminates the need for manual adjustments while ensuring comfort precisely when needed. Central to this automation is the X-400 controller, which uses its internal clock and calendar to execute pre-programmed temperature changes. The X-400’s relay outputs interface directly with the church’s electric heating system, triggering adjustments based on time-based rules.

Redundant Control and Manual Override

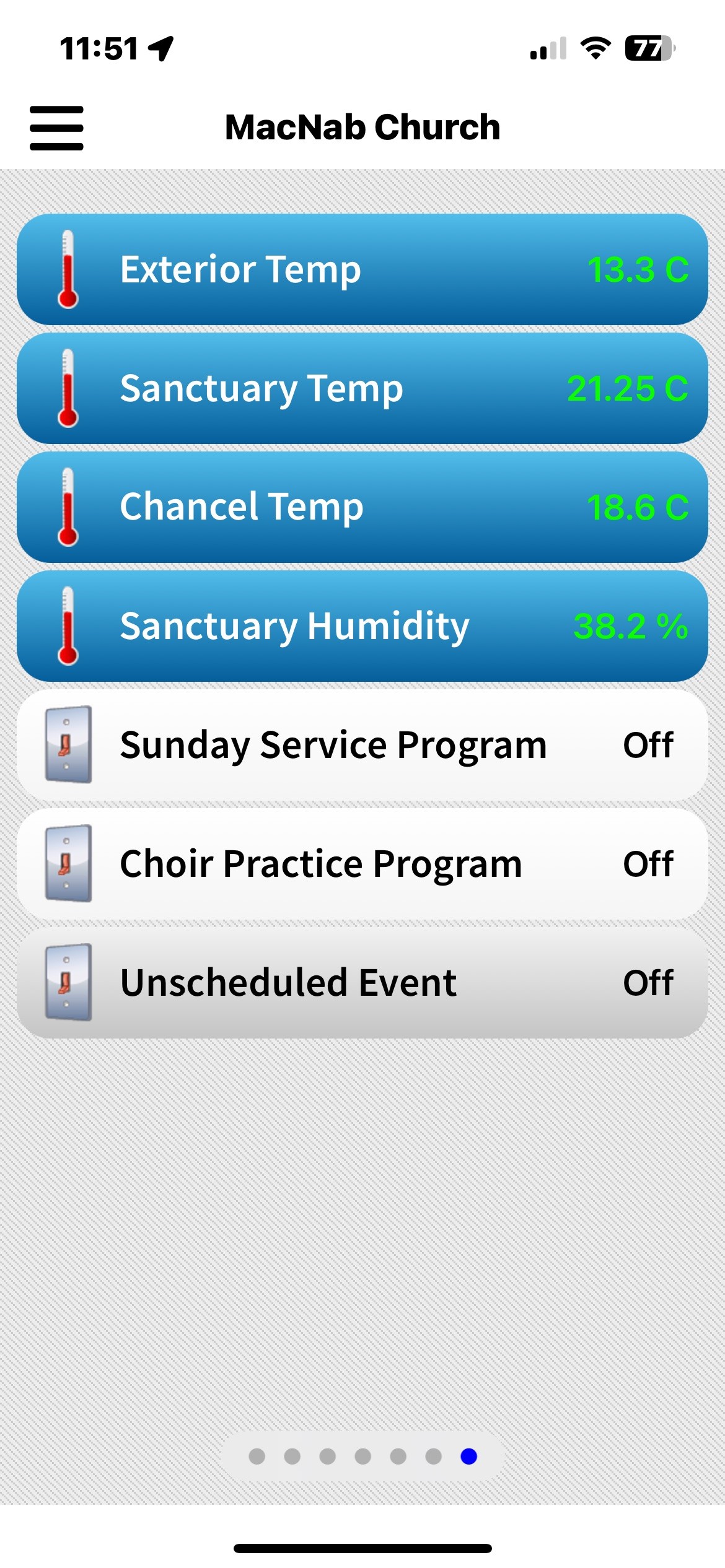

Safety and flexibility are prioritized through the X-17S expansion module, which adds critical redundancy and user control. The X-17S’s four optically isolated digital inputs monitor manual override requests, whether triggered via a web interface or physical switch. These inputs ensure electrical separation between the church’s HVAC equipment and the low-voltage control system, protecting against interference. The X-17S’s four SPST relays handle moderate loads, such as temporary heating activation for unscheduled events, and are configured for On/Off or Pulse functions to ensure reliability even if a single component fails.

Seamless Transition to Gas Heating

As the church considers transitioning from electric to gas heating, Dave’s design remains future-proof. The X-400’s relay outputs can interface with gas valves, retaining the existing automation logic without requiring hardware changes. The modularity of the X-17S also allows for integration of additional sensors (e.g., occupancy detectors or humidity monitors) to further optimize energy use, ensuring the system evolves with the church’s needs.

Community Impact and Cost Savings

The system reduces heating costs by an estimated 30%—a critical benefit for a nonprofit organization—by maintaining lower temperatures during idle periods. This efficiency does not come at the expense of comfort: over 100 congregants enjoy a warm environment during services and events. The project also serves as a replicable model for other community spaces, demonstrating how industrial-grade ControlByWeb hardware can be adapted for accessible, budget-friendly automation.

Proven Reliability and Future-Readiness

After months of reliable operation, the system has proven its robustness. Its modular design ensures scalability; for example, integrating a WB-800 thermostat could refine temperature accuracy, while XML data transfer (via the X-400’s scripting capabilities) might enable synchronization with future expansions, such as additional church zones.

Conclusion

Vanco Electrical Solutions applauds Dave Nicoll’s innovative use of ControlByWeb’s X-400 and X-17S to harmonize cost, comfort, and sustainability. His project exemplifies how automation can adapt to evolving infrastructure needs—from energy source transitions to community growth—while maintaining simplicity and reliability. Thank you, Dave, for showcasing the power of practical, community-driven control solutions!
